TMS320F241PG - Texas Instruments

Description: IC, Microcontroller, DSP, SMT, TMS320F241PG

Download TMS320F241PG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TMS320F241PG - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

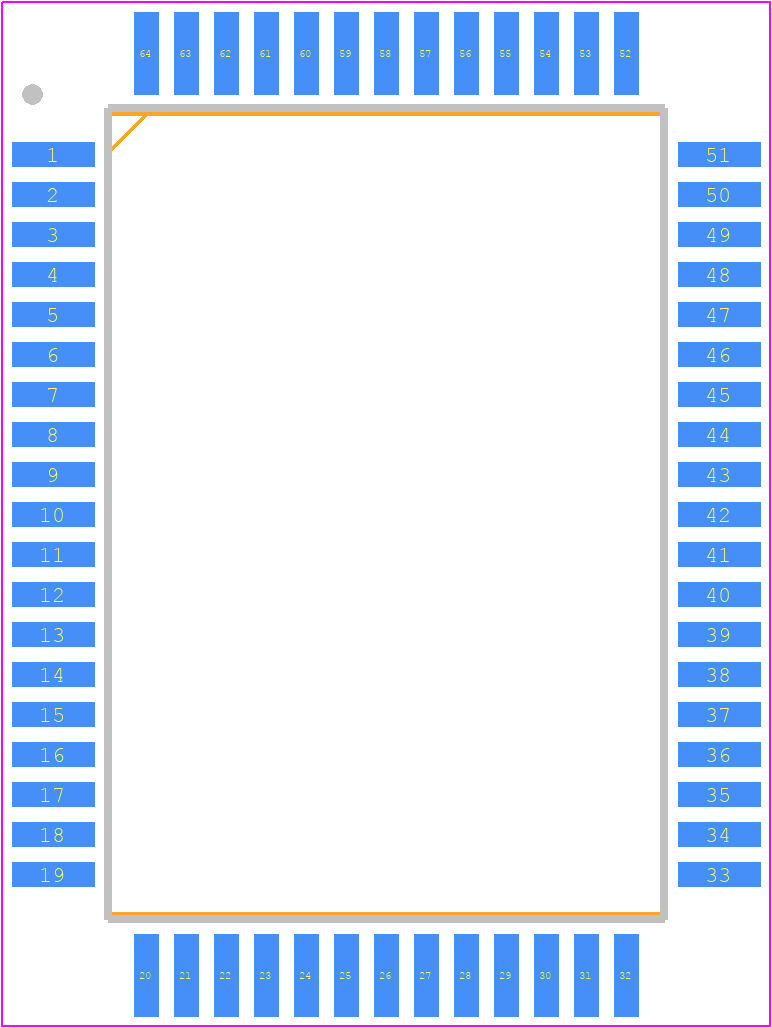

TMS320F241PG - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PG (R-PQFP-G64)
click to zoom
3D Models
TMS320F241PG - Texas Instruments - 3D model - Quad Flat Packages - PG (R-PQFP-G64)
click to zoom

TMS320F241PG Details

  • Manufacturer Part Number:

    TMS320F241PG

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    QFP-64

  • Pin Count:

    64

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Barrel Shifter:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    5 MHz

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    R-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    20 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP64,.7X.95,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (words):

    544

  • Seated Height-Max:

    3.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, CONTROLLER

TMS320F241PG Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 20 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
  • The GPIO pins can be configured as inputs or outputs using the GPIO Direction (DIR) register. Set the corresponding bit to 0 to configure the pin as an input, or set it to 1 to configure it as an output.
  • The JTAG pins are used for debugging and programming the device. They can be used with a JTAG emulator or a debugger to load code, set breakpoints, and inspect variables. The JTAG interface is also used for boundary scan testing.
  • The ADC module can be used to convert analog signals to digital values by configuring the ADC control registers, selecting the analog input channel, and starting the conversion process. The converted digital value can be read from the ADC result register.
  • The Watchdog Timer (WDT) is a safety feature that resets the device if it fails to respond within a specified time period. It can be used to detect and recover from software faults or hangs. The WDT can be enabled and configured using the WDT control registers.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMS320F241PG Overview

Use the download button to access the TMS320F241PG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMS32, or try a keyword search, such as Digital Signal Processors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
