The maximum clock frequency of the TMS320F280200DAT is 60 MHz.
The PWM outputs on the TMS320F280200DAT can be configured using the ePWM module. The ePWM module has several registers that need to be configured to set the PWM frequency, duty cycle, and other parameters. Refer to the TMS320F280200DAT datasheet and the ePWM module user's guide for more information.
Yes, the TMS320F280200DAT is well-suited for motor control applications. It has a range of peripherals, including PWM outputs, ADCs, and capture units, that make it ideal for motor control applications. Additionally, the device has a range of motor control-specific peripherals, such as the ePWM module and the QEP module.
Implementing a bootloader on the TMS320F280200DAT involves several steps, including configuring the device's flash memory, implementing a communication protocol, and writing the bootloader code. Texas Instruments provides a range of resources, including application notes and code examples, to help with bootloader implementation.
The TMS320F280200DAT has 128 KB of flash memory.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TMS320F280200DAT Overview

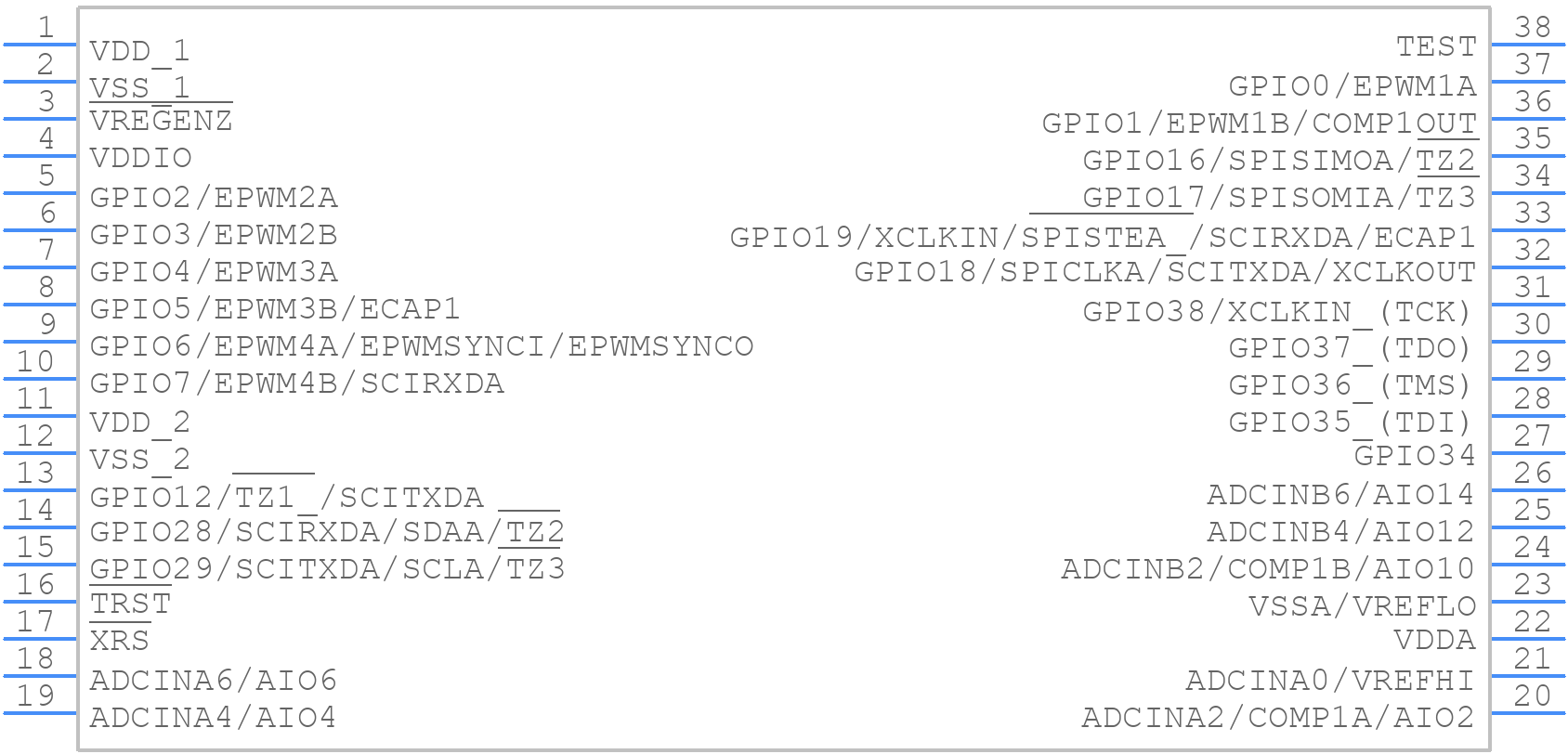

Use the download button to access the TMS320F280200DAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMS32,
or try a keyword search, such as Microcontrollers
