TMS320F2812GHHQ - Texas Instruments

TMS320F2812GHHQ Details

• Manufacturer Part Number:

  TMS320F2812GHHQ

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  BGA

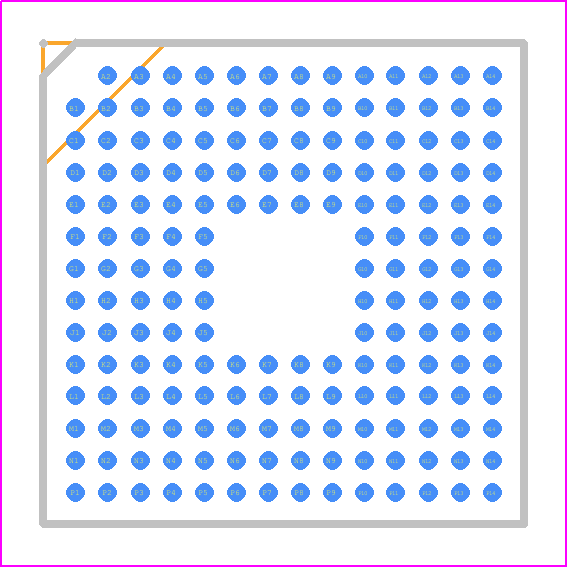

• Package Description:

  BGA-179

• Pin Count:

  179

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES AT 1.8 SUPPLY AT 135MHZ

• Address Bus Width:

  19

• Barrel Shifter:

  NO

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  C28X

• Clock Frequency-Max:

  150 MHz

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PBGA-B179

• JESD-609 Code:

  e0

• Length:

  12 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of External Interrupts:

  3

• Number of Terminals:

  179

• Number of Timers:

  8

• On Chip Data RAM Width:

  16

• On Chip Program ROM Width:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA179,14X14,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  220

• Qualification Status:

  Not Qualified

• RAM (bytes):

  36864

• RAM (words):

  18432

• ROM Programmability:

  OTPROM

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.4 mm

• Supply Current-Max:

  230 mA

• Supply Voltage-Max:

  2 V

• Supply Voltage-Min:

  1.81 V

• Supply Voltage-Nom:

  1.9 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  12 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
