TMS320F28378SPZPS - Texas Instruments

Description: 32-bit Microcontrollers - MCU C2000 32-bit MCU with 400 MIPS, 1xCPU, 1xCLA, FPU, TMU, 1024 KB flash, CLB, EMIF, 12b ADC 100-HTQFP -40 to 125

Download TMS320F28378SPZPS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TMS320F28378SPZPS - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

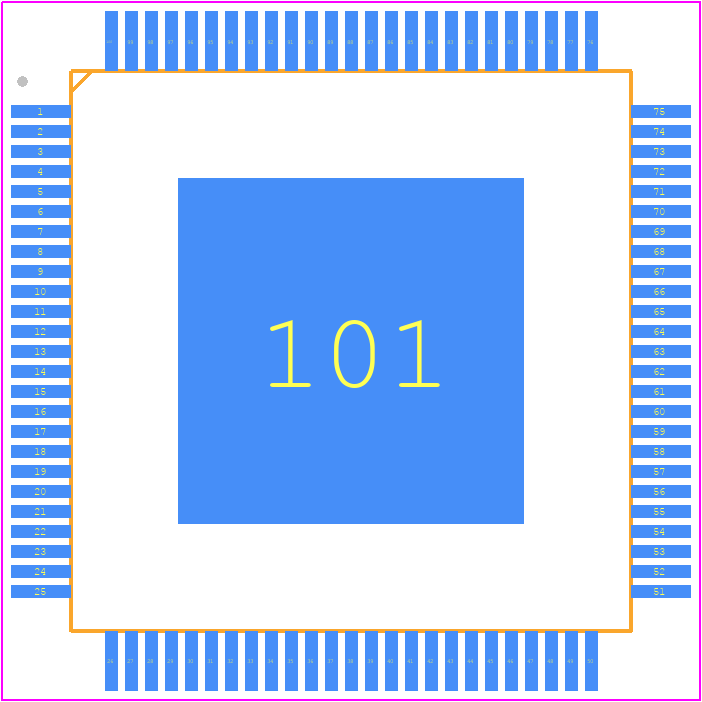

TMS320F28378SPZPS - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PZP0100N
click to zoom
3D Models
TMS320F28378SPZPS - Texas Instruments - 3D model - Quad Flat Packages - PZP0100N
click to zoom

TMS320F28378SPZPS Details

  • Manufacturer Part Number:

    TMS320F28378SPZPS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    YES

  • Address Bus Width:

    8

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    100 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    6

  • Number of I/O Lines:

    41

  • Number of Terminals:

    100

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    167936

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    200 MHz

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

TMS320F28378SPZPS Frequently Asked Questions (FAQs)

  • The TMS320F28378SPZPS has an operating temperature range of -40°C to 125°C, but it's recommended to operate within -40°C to 105°C for optimal performance and reliability.
  • The boot mode can be configured using the BOOTMODE pins (BOOTMODE[1:0]) and the CFGBOOT[1:0] pins. The BOOTMODE pins select the boot mode (flash, OTP, or ROM), while the CFGBOOT pins configure the boot configuration (e.g., boot from flash or OTP). Refer to the device's user guide for specific configuration details.
  • The maximum clock frequency for the CPU is 300 MHz, while the maximum clock frequency for the peripherals varies depending on the specific peripheral. For example, the maximum clock frequency for the ADC is 50 MHz, while the maximum clock frequency for the SPI is 100 MHz. Refer to the device's user guide for specific peripheral clock frequency limits.
  • The TMS320F28378SPZPS has a built-in watchdog timer (WDT) that can be enabled and configured using the WDTCTL register. The WDT can be clocked from the internal clock or an external clock source, and its timeout period can be set to one of several predefined values. Refer to the device's user guide for specific configuration details.
  • The recommended POR circuit for the TMS320F28378SPZPS involves using a voltage supervisor (e.g., TLV7031) to monitor the power supply voltage and generate a reset signal when the voltage falls below a certain threshold. The reset signal should be connected to the device's RESET pin. Refer to the device's user guide for specific circuit design recommendations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMS320F28378SPZPS Overview

Use the download button to access the TMS320F28378SPZPS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMS32, or try a keyword search, such as Microcontrollers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
