The recommended power-up sequence is to apply power to the core voltage (VDD) first, followed by the input/output voltage (VDDI/O). This ensures that the internal voltage regulators are properly enabled and that the device powers up correctly.
To configure the EMIF for optimal performance, ensure that the memory clock frequency is set correctly, and the memory timing parameters (e.g., CAS latency, RAS-to-CAS delay) are configured according to the memory device specifications. Additionally, consider using the EMIF's built-in features, such as data strobe and clock stretching, to improve data transfer efficiency.
The maximum operating temperature range for the TMS320C6205DZWTA200 is -40°C to 100°C. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures, and proper thermal management is crucial to ensure reliable operation.
The TMS320C6205DZWTA200 has a built-in watchdog timer module that can be configured to reset the device in case of a software fault or hang. To implement a watchdog timer, enable the watchdog timer module, set the timeout period, and service the watchdog timer regularly to prevent a reset. Consult the device's user manual for detailed instructions.
The recommended method for debugging the TMS320C6205DZWTA200 is to use the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE) in conjunction with a JTAG emulator, such as the XDS560v2. CCS provides a comprehensive set of debugging tools, including source-level debugging, breakpoints, and real-time data visualization.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMS32C6205DZWTA200 Overview

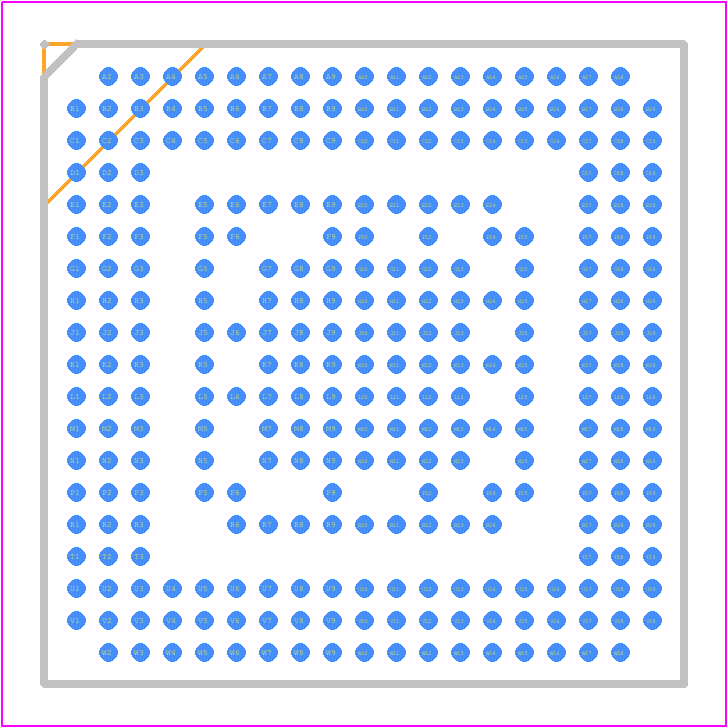

Use the download button to access the TMS32C6205DZWTA200 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMS32,
or try a keyword search, such as Digital Signal Processors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
