TMS34010FNL-40 - Texas Instruments

TMS34010FNL-40 Details

• Manufacturer Part Number:

  TMS34010FNL-40

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

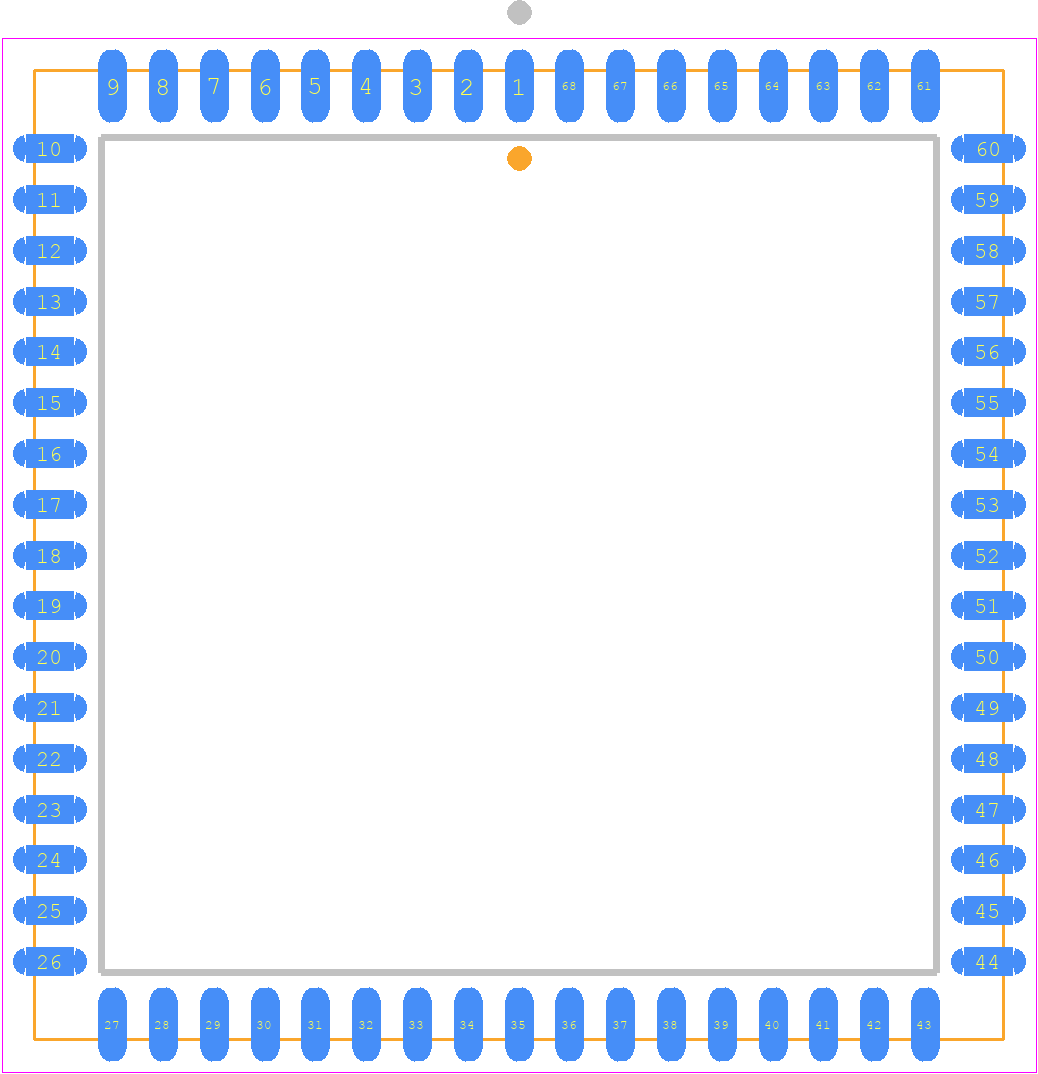

• Package Description:

  LCC-68

• HTS Code:

  8542.31.00.40

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Clock Frequency-Max:

  40 MHz

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PQCC-N68

• Length:

  24.23 mm

• Maximum Num of Bits per Pixel:

  16

• Number of Terminals:

  68

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCN

• Package Equivalence Code:

  LDCC68,1.0SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.5 mm

• Supply Current-Max:

  125 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  24.23 mm

• uPs/uCs/Peripheral ICs Type:

  GRAPHICS PROCESSOR
