The recommended operating temperature range for the TMS5701115CZWTQQ1 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
The clock system on the TMS5701115CZWTQQ1 can be configured using the Clock Management Module (CMM). The CMM allows you to select the clock source, configure the clock frequency, and enable or disable clock outputs. Refer to the device's user manual and the CMM chapter for detailed information on clock configuration.
The maximum frequency of the CPU on the TMS5701115CZWTQQ1 is 300 MHz. However, the actual operating frequency may be lower depending on the clock configuration, voltage, and temperature.
The TMS5701115CZWTQQ1 is designed with functional safety in mind and includes features such as dual-core lockstep, error correction code (ECC) on memories, and a safety manual. To implement functional safety, you should follow the guidelines outlined in the safety manual and use the safety features provided by the device. Additionally, you may need to implement safety protocols and mechanisms in your software application.
The TMS5701115CZWTQQ1 is a specific variant of the TMS570 family of microcontrollers. The main differences between TMS570 devices lie in their peripherals, memory sizes, and package options. The TMS5701115CZWTQQ1 has a unique combination of peripherals, such as Ethernet, CAN, and UART, and is available in a 144-pin LQFP package. Refer to the device's datasheet and the TMS570 family overview for a detailed comparison of the different variants.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMS5701115CZWTQQ1 Overview

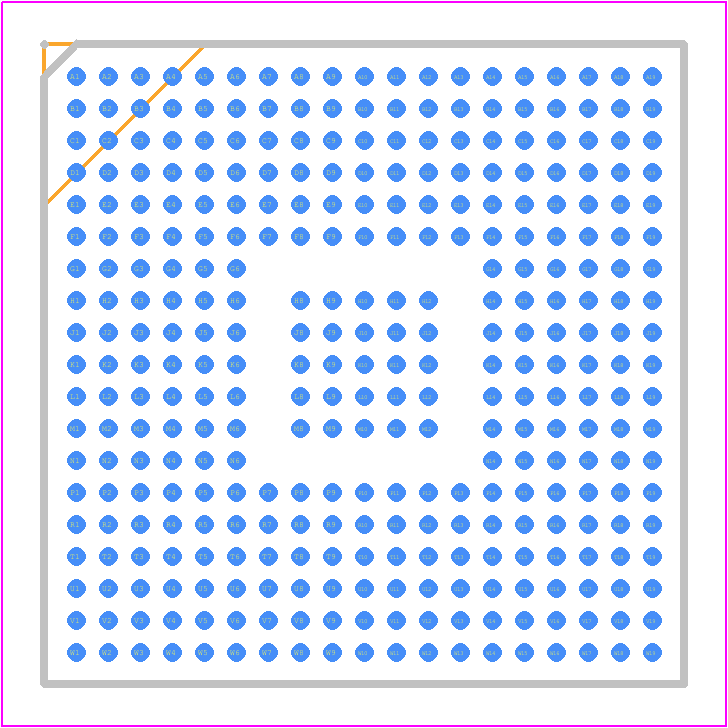

Use the download button to access the TMS5701115CZWTQQ1 schematic symbol, PCB footprint, and 3D model.
