- Part Number TMS9118NL
- Manufacturer Texas Instruments
- Pin Count 40
- Part Category Transistor E-mode GaN (3-Pin)
- Package Category Dual-In-Line Packages

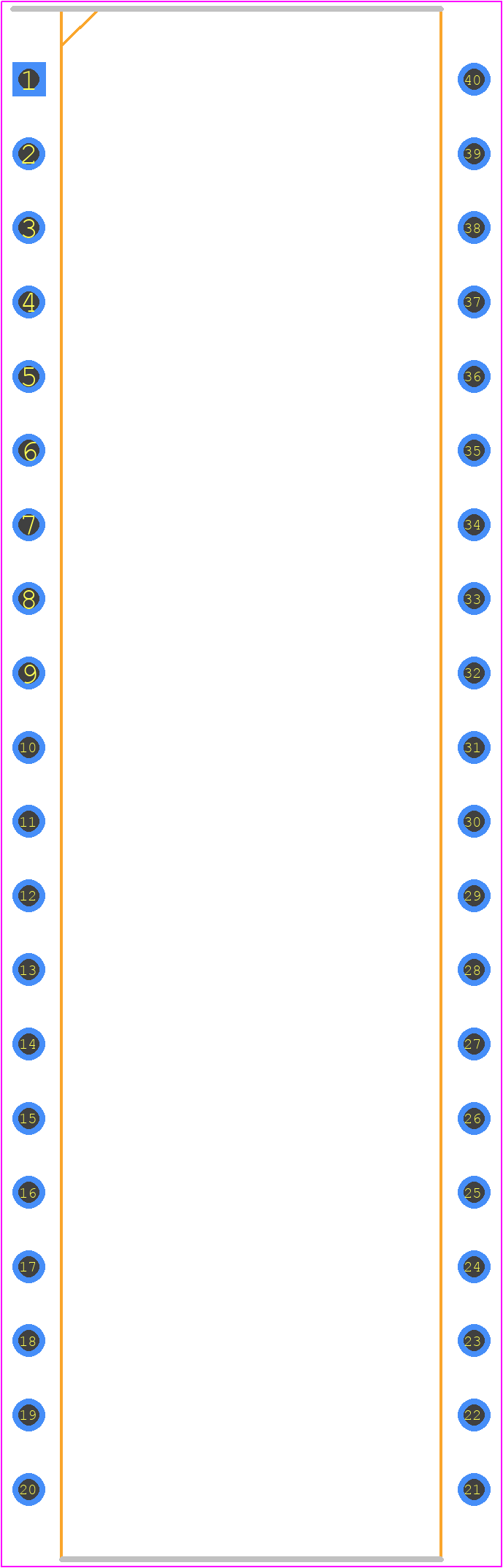

- Footprint Name Dual-In-Line Packages - 40-PIN PLASTIC DIP
- Pinout / Pin List Click Here (Member Only)
TMS9118NL Details
-
Manufacturer Part Number:
TMS9118NL
-
Part Life Cycle Code:
Obsolete
-
Package Description:
DIP-40
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
JESD-30 Code:
R-PDIP-T40
-
Number of Terminals:
40
-
Operating Temperature-Max:
70 °C
-
Package Body Material:
PLASTIC/EPOXY
-
Package Code:
DIP
-
Package Equivalence Code:
DIP40,.6
Trust Checks
System Verified
TMS9118NL Overview

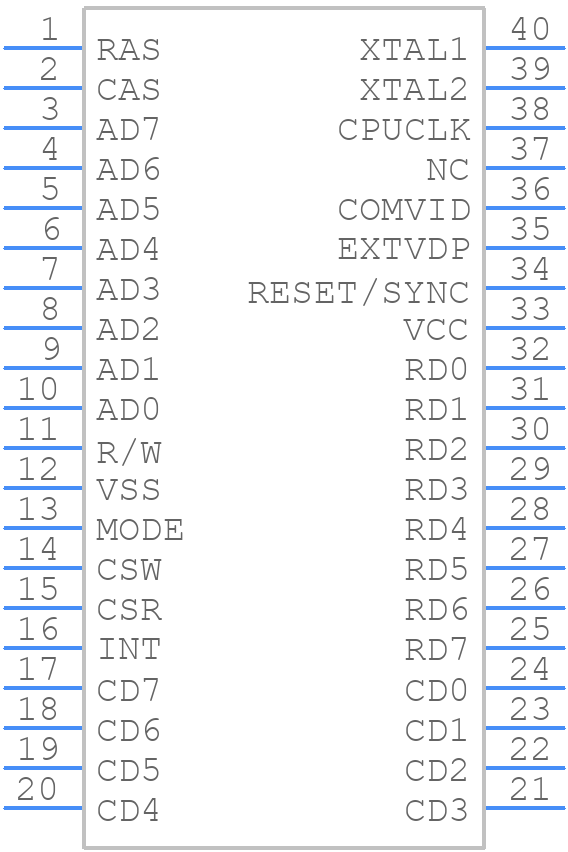

Use the download button to access the TMS9118NL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TMS91,
or try a keyword search, such as Display Controllers
