TMS9918ANL - Texas Instruments

Description: NON-VGA VIDEO CONTROLLER, 40 Pin, DIP

Download TMS9918ANL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

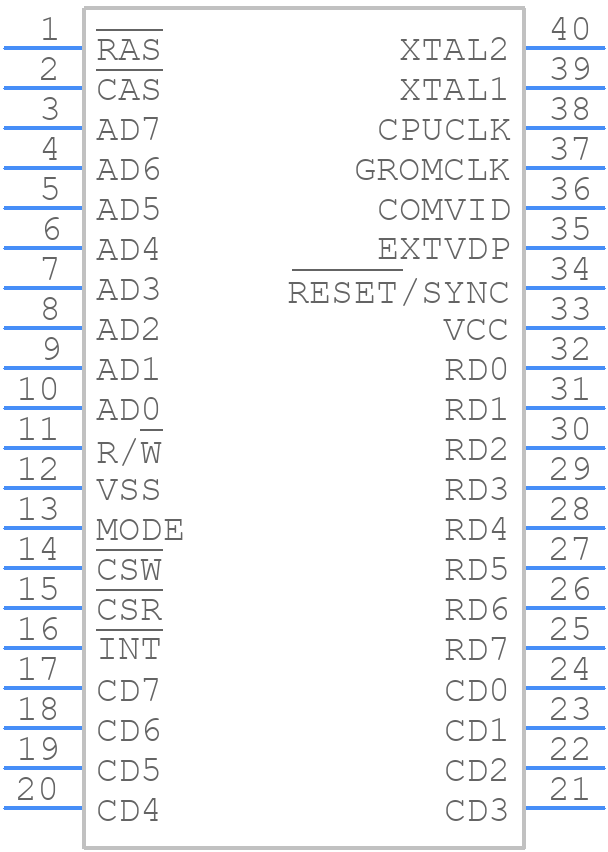

TMS9918ANL - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

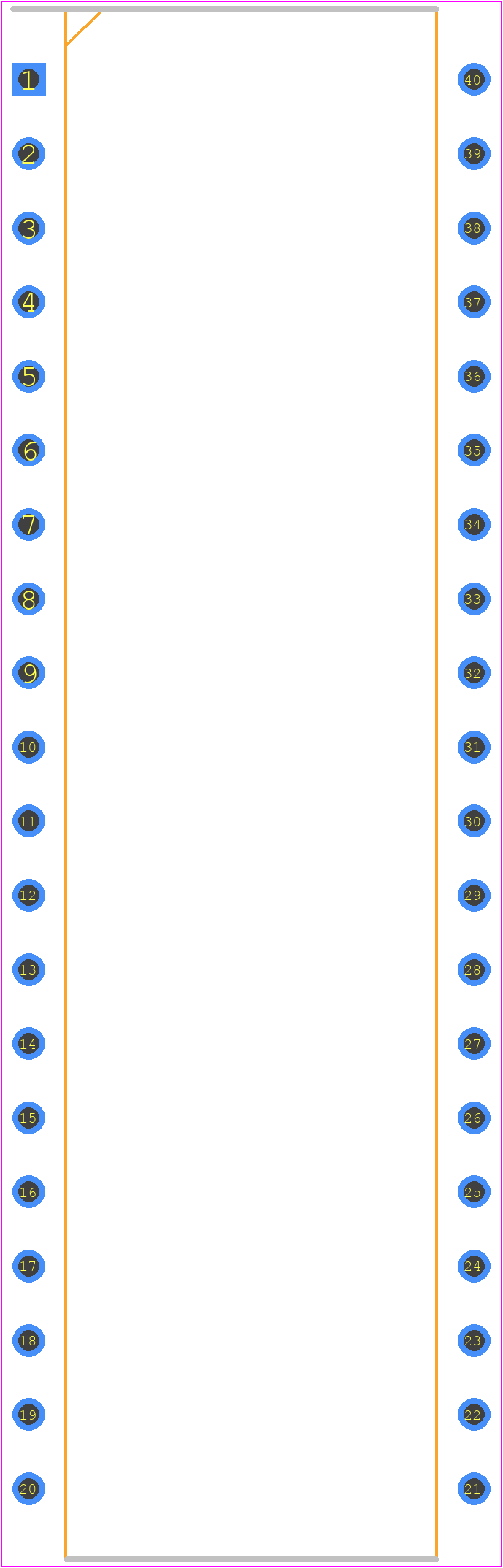

TMS9918ANL - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TMS9918 4O-PIN PLASTIC DUAL·IN-LiNE PACKAGE
click to zoom
3D Models
TMS9918ANL - Texas Instruments - 3D model - Dual-In-Line Packages - TMS9918 4O-PIN PLASTIC DUAL·IN-LiNE PACKAGE
click to zoom

TMS9918ANL Details

  • Manufacturer Part Number:

    TMS9918ANL

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-40

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDIP-T40

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP40,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    MOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

TMS9918ANL Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TMS9918ANL is 4.5V to 5.5V.
  • The video output of the TMS9918ANL should be terminated with a 75Ω resistor to ensure proper signal integrity and to prevent signal reflections.
  • The TMS9918ANL can operate at a maximum clock frequency of 10.738635 MHz.
  • The TMS9918ANL can be configured for PAL or NTSC mode by setting the appropriate values on the MODE pins (pins 34-37). Consult the datasheet for specific configuration details.
  • The COLUB and COLLB pins are used to select the color palette for the video output. COLUB selects the upper 4 bits of the color palette, while COLLB selects the lower 4 bits.
