TMUX1109RSVR - Texas Instruments

Description: 5 V, ±2.5 V, low-leakage-current, 4:1, 2-channel precision multiplexer

Download TMUX1109RSVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

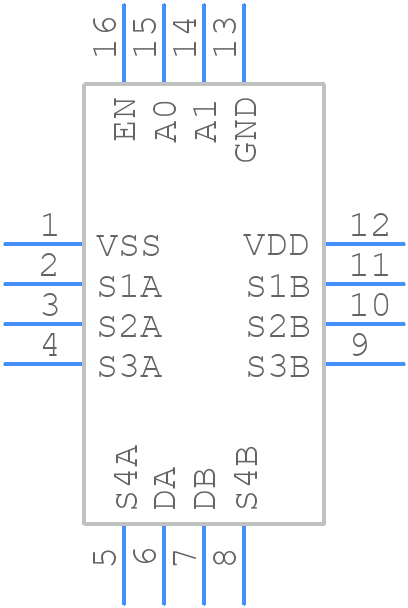

TMUX1109RSVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMUX1109RSVR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSV0016A
click to zoom
3D Models
TMUX1109RSVR - Texas Instruments - 3D model - Quad Flat No-Lead - RSV0016A
click to zoom

TMUX1109RSVR Details

  • Manufacturer Part Number:

    TMUX1109RSVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-12-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 4:1

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • Bandwidth-Nom:

    155 MHz

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance-Max (Ron):

    4.9 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

TMUX1109RSVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TMUX1109RSVR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power decoupling.
  • The TMUX1109RSVR requires a single 1.8V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power source, and to ensure that the power supply is stable before applying signals to the device. There are no specific power sequencing requirements, but it's recommended to power up the device before applying signals to the analog inputs.
  • The TMUX1109RSVR can operate at frequencies up to 100 MHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. It's recommended to consult the datasheet and application notes for more information on high-frequency operation.
  • The TMUX1109RSVR has built-in ESD protection, but it's still recommended to take precautions to prevent ESD damage during handling and assembly. This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and using ESD-protected workstations.
  • The TMUX1109RSVR is specified to operate over a temperature range of -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C. Operating the device outside of this range may affect its performance and reliability.
