TMUX1121DGKR - Texas Instruments

Description: Analog Switch ICs 5-V, Low-Leakage-Current, 1:1 (SPST), 2-Channel Precision Switches (active high) 8-VSSOP -40 to 125

Download TMUX1121DGKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

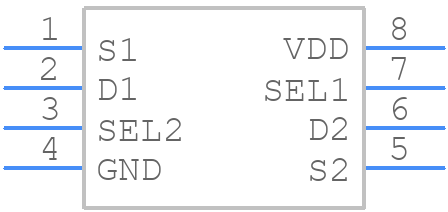

Symbol
TMUX1121DGKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMUX1121DGKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TMUX1121DGKR
click to zoom
3D Models
TMUX1121DGKR - Texas Instruments - 3D model - Small Outline Packages - TMUX1121DGKR
click to zoom

TMUX1121DGKR Details

  • Manufacturer Part Number:

    TMUX1121DGKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-08-23

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 1:1 SPST

  • Analog IC - Other Type:

    SPST

  • Bandwidth-Nom:

    300 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    40 dB

  • On-state Resistance Match-Nom:

    0.4 Ω

  • On-state Resistance-Max (Ron):

    4.9 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.08 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    190 ns

  • Switch-on Time-Max:

    190 ns

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TMUX1121DGKR Frequently Asked Questions (FAQs)

  • It's recommended to follow a star topology for the signal lines, keeping them short and away from noise sources. Use a solid ground plane and decouple the device with 0.1uF and 10uF capacitors. Route the analog and digital signals separately to minimize crosstalk.
  • The TMUX1121DGKR requires a single 1.8V power supply. Ensure a clean power supply with minimal noise and ripple. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The TMUX1121DGKR can operate up to 100 MHz. For high-frequency operation, use a low-ESR capacitor for decoupling, and keep the signal lines short and shielded. Avoid using vias under the device, and use a solid ground plane to minimize inductance.
  • Configure the TMUX1121DGKR for differential signaling by connecting the differential pairs (e.g., IN1+ and IN1-) to the corresponding pins. Differential signaling provides common-mode noise rejection, improved signal-to-noise ratio, and increased immunity to electromagnetic interference.
  • Use a series termination resistor (Rs) of 50-75 ohms for single-ended signals and 25-37.5 ohms for differential signals. Proper termination ensures signal integrity by reducing reflections, ringing, and signal degradation.
