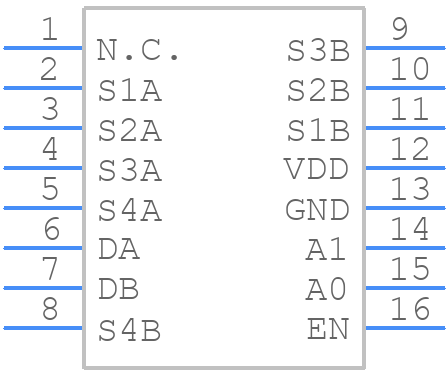

TMUX1209RSVR - Texas Instruments

TMUX1209RSVR Details

• Manufacturer Part Number:

  TMUX1209RSVR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2019-03-29

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Configuration : 4:1

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• Bandwidth-Nom:

  125 MHz

• JESD-30 Code:

  R-PQCC-N16

• JESD-609 Code:

  e4

• Length:

  2.6 mm

• Moisture Sensitivity Level:

  1

• Normal Position:

  NO

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  42 dB

• On-state Resistance Match-Nom:

  0.15 Ω

• On-state Resistance-Max (Ron):

  105 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.55 mm

• Supply Current-Max (Isup):

  0.0027 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  1.08 V

• Supply Voltage-Nom (Vsup):

  1.2 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  150 ns

• Switch-on Time-Max:

  190 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.8 mm
