A good PCB layout for the TMUX1574RSVR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power and decoupling, use a high-quality, low-ESR capacitor (e.g., 10uF) as close as possible to the VCC pin. Additionally, use a 1uF capacitor in parallel with a 10nF capacitor to filter out high-frequency noise. Make sure to follow the recommended power-up sequence and voltage ramp rates.
The TMUX1574RSVR can support data rates up to 1.5 Gbps, but the actual achievable data rate depends on the specific application, PCB layout, and signal integrity. It's recommended to perform signal integrity analysis and simulation to determine the maximum achievable data rate for a specific design.
The TMUX1574RSVR has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or a thermal pad, and ensure good airflow around the device. It's also recommended to follow the recommended thermal design guidelines and to perform thermal simulations to ensure the device operates within the specified temperature range.
The internal termination resistors of the TMUX1574RSVR can be programmed to optimize signal integrity. The recommended settings depend on the specific application and signal frequency. As a general guideline, use 50Ω for high-speed signals and 100Ω for low-speed signals. Consult the datasheet and application notes for more detailed information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX1574RSVR Overview

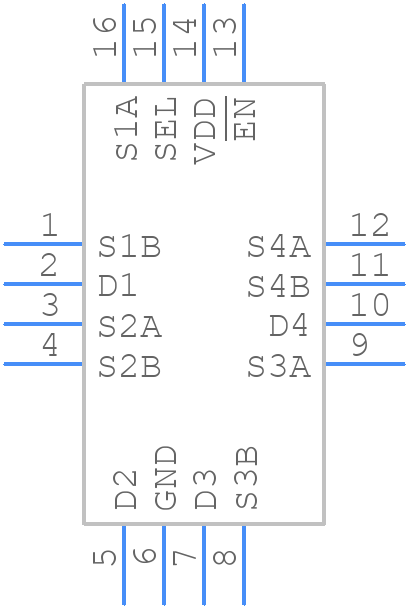

Use the download button to access the TMUX1574RSVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX1,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
