TMUX6111RTER - Texas Instruments

Description: ±16.5-V, low Capacitance, low-leakage-current, precision, quad SPST switches (normally closed)

Download TMUX6111RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

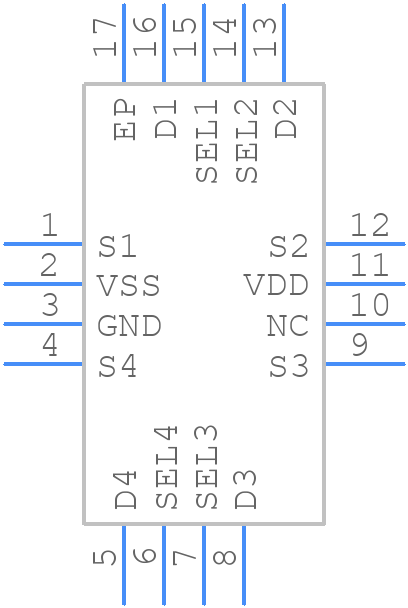

TMUX6111RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMUX6111RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
TMUX6111RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

TMUX6111RTER Details

  • Manufacturer Part Number:

    TMUX6111RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 1:1 SPST

  • Analog IC - Other Type:

    SPST

  • Bandwidth-Nom:

    380 MHz

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    85 dB

  • On-state Resistance Match-Nom:

    2.5 Ω

  • On-state Resistance-Max (Ron):

    250 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.023 mA

  • Supply Voltage-Max (Vsup):

    33 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    81 ns

  • Switch-on Time-Max:

    117 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TMUX6111RTER Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a symmetrical layout with matched impedance traces, avoiding vias and right-angle bends. Keep analog and digital signals separate, and use a solid ground plane to reduce noise. Refer to the TI application note 'AN-1527 Layout and Routing Guidelines for Switches and Multiplexers' for more information.
  • The TMUX6111RTER is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat dissipation, avoiding thermal gradients, and using a thermally conductive material for the PCB. Refer to the TI application note 'AN-2025 Thermal Management for Switches and Multiplexers' for more information.
  • Power up the VCC pin first, followed by the VEE pin. Ensure that the VCC pin reaches its minimum specified voltage before applying a signal to the input pins. Avoid applying input signals before the power supplies are stable.
  • Use ESD-protective equipment, such as wrist straps, mats, and bags, when handling the device. Ensure that the PCB design includes ESD protection diodes and resistors, and follow proper handling and storage procedures to prevent damage.
  • The TMUX6111RTER is designed for low-frequency switching applications. While it can operate at higher frequencies, the recommended maximum switching frequency is 100 kHz to ensure reliable operation and minimize signal degradation.
