Texas Instruments recommends a symmetrical layout with matched trace lengths and impedance control to minimize signal degradation and noise. It's also essential to keep the analog and digital signals separate and use a solid ground plane to reduce noise coupling.
For high-speed signals, it's crucial to follow the recommended configuration and layout guidelines in the datasheet. Additionally, ensure that the signal traces are properly terminated, and the mux is configured in the correct mode (e.g., HDMI or DisplayPort) using the control pins.
The maximum operating frequency of the TMUX6112RTER is 12 Gbps. As the frequency increases, signal integrity may be affected due to increased attenuation, jitter, and skew. To mitigate these effects, use proper signal conditioning, termination, and layout techniques.
The TMUX6112RTER requires a single 1.8V or 3.3V power supply. Ensure that the power supply is stable and well-regulated, and follow the recommended power sequencing guidelines in the datasheet to prevent damage or malfunction.
The TMUX6112RTER has a maximum junction temperature of 150°C. To prevent overheating, ensure good thermal conductivity between the device and the PCB, use thermal vias, and provide adequate airflow or heat sinking. Monitor the device temperature and adjust the operating conditions accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX6112RTER Overview

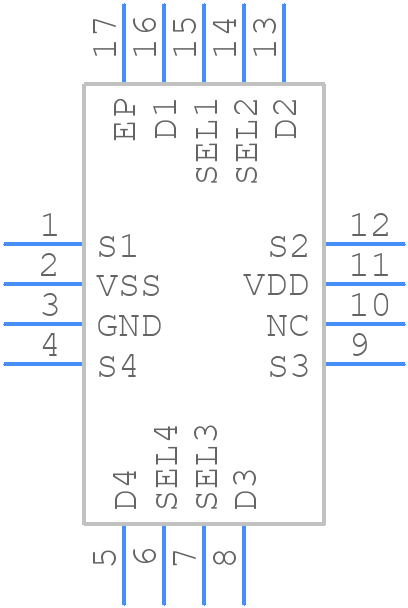

Use the download button to access the TMUX6112RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX6,
or try a keyword search, such as Multiplexers or Switches
