To minimize signal degradation, it's recommended to follow a star topology for the signal traces, keep the signal traces short and direct, and use a solid ground plane to reduce electromagnetic interference (EMI). Additionally, use a 50-ohm transmission line impedance for the signal traces and avoid 90-degree turns.
For proper termination, use a 100-ohm differential termination resistor (RT) between the differential pairs, and a 50-ohm single-ended termination resistor (RT/2) to VCC or GND. Ensure the termination resistors are placed close to the TMUX6121DGSR to minimize signal reflections.
The TMUX6121DGSR can operate up to 12 Gbps. However, as the frequency increases, signal integrity may be affected due to increased attenuation, jitter, and crosstalk. To mitigate these effects, use a well-designed PCB layout, ensure proper termination, and consider using signal conditioning or equalization techniques.
Power sequencing is critical for the TMUX6121DGSR. Ensure that VCC is applied before the input signals, and the reset pin (RESET) is asserted low during power-up. Hold the reset pin low for at least 10 ms after VCC reaches 90% of its nominal value. Release the reset pin when the device is fully powered up.
The TMUX6121DGSR has a maximum junction temperature (TJ) of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and keep the device away from heat sources. Monitor the device temperature and adjust the operating conditions to prevent overheating, which can lead to reduced reliability and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX6121DGSR Overview

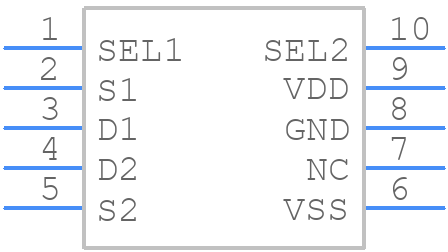

Use the download button to access the TMUX6121DGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX6,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
