Texas Instruments recommends a symmetrical layout with matched impedance traces, and to keep the analog and digital signals separate. Additionally, use a solid ground plane and decouple the power supply lines with capacitors.
For high-frequency applications, ensure that the input and output traces are impedance-matched, and use a low-ESR capacitor for decoupling. Also, set the mux to the correct configuration using the control pins, and consider using a series resistor to reduce signal reflections.
The maximum operating frequency of the TMUX6122DGSR is 10 GHz. As the frequency increases, the signal integrity may be affected by the mux's insertion loss, return loss, and crosstalk. Ensure that the signal amplitude and frequency are within the recommended specifications to maintain signal integrity.
The TMUX6122DGSR requires a single 1.8V to 5.5V power supply. Ensure that the power supply is stable and well-regulated, and that the power sequencing is correct to prevent latch-up or damage to the device.
The TMUX6122DGSR has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and keep the device away from heat sources. Also, ensure that the PCB design allows for good airflow and heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX6122DGSR Overview

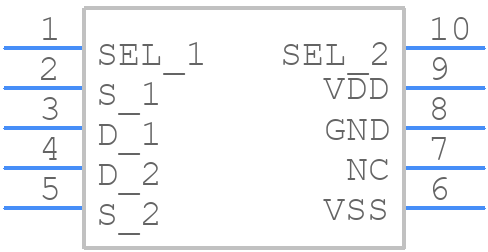

Use the download button to access the TMUX6122DGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX6,
or try a keyword search, such as Multiplexers or Switches
