Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated and shielded to reduce crosstalk.
To minimize high-frequency noise and EMI, use a combination of techniques such as shielding, filtering, and grounding. Ensure that the TMUX6209RUMR is placed close to the signal sources, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, consider using a shielded enclosure and connecting the device's exposed pad to a solid ground plane.
The TMUX6209RUMR is rated for operation from -40°C to 125°C. However, it's essential to consider the thermal design and ensure that the device is properly heat-sinked to maintain a safe operating temperature, especially in high-power applications.
To ensure signal integrity and minimize signal loss, use high-quality, low-loss PCB materials, and follow good high-frequency design practices. Ensure that the signal traces are well-matched, and use impedance-controlled traces to minimize reflections. Additionally, consider using signal conditioning circuits, such as buffers or amplifiers, to maintain signal quality.
To ensure stable operation, use a combination of decoupling capacitors and filters to regulate the power supply. Place a 10-100 nF decoupling capacitor close to the device's power pins, and consider using a ferrite bead or inductor to filter out high-frequency noise. Additionally, use a low-dropout regulator (LDO) or a switching regulator with a low output impedance to minimize power supply noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX6209RUMR Overview

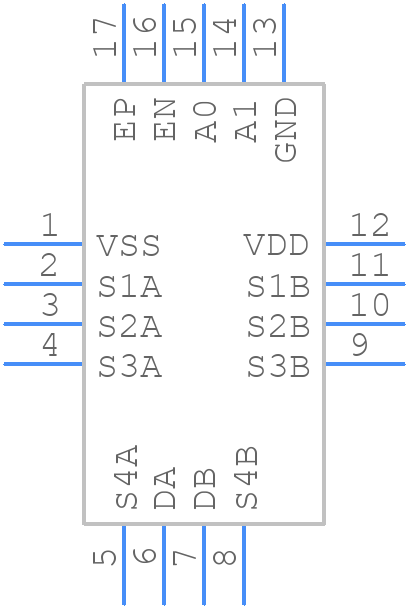

Use the download button to access the TMUX6209RUMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX6,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
