Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to minimize crosstalk.
To minimize high-frequency noise and EMI, use a low-pass filter at the input, and consider adding a ferrite bead or a common-mode choke to the output. Ensure that the device is properly decoupled, and use a solid ground plane to reduce radiation. Shielding the device and using a metal can or a shielded enclosure can also help reduce EMI.
The TMUX6211RUMR is rated for operation from -40°C to 125°C. However, it's essential to consider the derating of the device's performance and reliability at higher temperatures. Consult the datasheet for specific derating curves and guidelines.
Use a high-quality, low-ESR capacitor (e.g., 100nF to 1uF) as close as possible to the device's power pins. Ensure that the power supply is well-regulated and can provide the required current. Consider adding a voltage regulator or a power filter to the input to reduce noise and ripple.
The TMUX6211RUMR requires a 50Ω termination at the output. Use a series resistor (e.g., 50Ω) and a shunt capacitor (e.g., 100pF) to ensure proper termination and minimize reflections. Consult the datasheet for specific termination schemes and guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX6211RUMR Overview

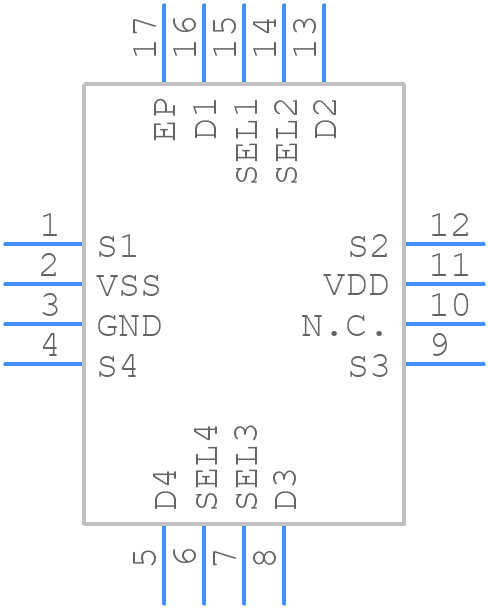

Use the download button to access the TMUX6211RUMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX6,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
