Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to minimize crosstalk.
To minimize high-frequency noise and EMI, use a low-pass filter at the input, and consider adding a ferrite bead or a common-mode choke to the output. Also, ensure that the device is properly decoupled, and the power supply is well-regulated. Shielding the device and using a ground plane can also help reduce EMI.
The TMUX6213RUMR is rated for operation from -40°C to 125°C. However, it's essential to consider the derating of the device's performance and power dissipation at higher temperatures. Consult the datasheet for specific temperature-related specifications and guidelines.
The input and output termination resistors depend on the specific application and signal requirements. As a general guideline, use 50-ohm resistors for high-speed signals, and 1-kohm resistors for low-speed signals. Consult the datasheet and application notes for specific recommendations and calculations.
To ensure proper operation and prevent latch-up, follow a controlled power-up and power-down sequence. Power up the device in the following order: VCC, VDD, and then the input signals. Power down in the reverse order: input signals, VDD, and then VCC.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX6213RUMR Overview

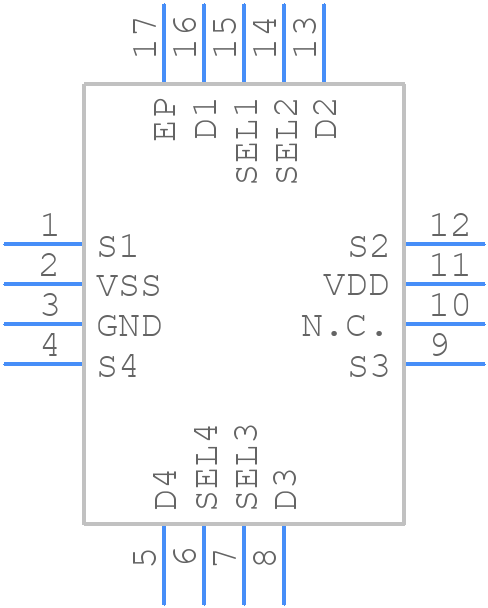

Use the download button to access the TMUX6213RUMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX6,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
