Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the analog and digital grounds are separated and connected at a single point.
The TMUX6219RQXR has a thermal pad that must be connected to a solid ground plane or a thermal relief pattern to dissipate heat. Ensure that the PCB design allows for adequate heat dissipation, and consider using thermal vias or a heat sink if necessary. Operating the device within the recommended temperature range is crucial to maintain its performance and reliability.
The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input signals. This sequence helps prevent latch-up and ensures proper device operation. It's also essential to ensure that the power supplies are stable and within the recommended voltage ranges before applying input signals.
Start by verifying that the power supplies are within the recommended ranges and that the input signals are correct. Check the device's operating temperature and ensure that it's within the recommended range. Use oscilloscopes or logic analyzers to debug the input and output signals. If issues persist, consult the datasheet and application notes or contact Texas Instruments' support team for further assistance.
Yes, the TMUX6219RQXR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a high-reliability process. However, it's essential to follow the recommended design and layout guidelines, as well as to perform thorough testing and validation to ensure the device meets the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX6219RQXR Overview

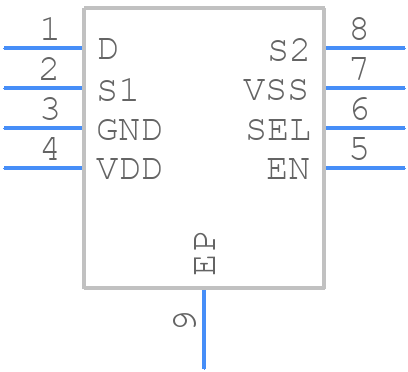

Use the download button to access the TMUX6219RQXR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX6,
or try a keyword search, such as Multiplexers or Switches
