Texas Instruments recommends a symmetrical layout with the device placed close to the signal sources, and using short, low-impedance traces to minimize signal degradation. Additionally, it's essential to follow good PCB design practices, such as using a solid ground plane, avoiding vias under the device, and keeping analog and digital signals separate.
To configure the TMUX6234RRQR, you'll need to set the correct address, configure the channel selection, and adjust the gain and offset settings according to your application's requirements. Refer to the datasheet and application notes for specific guidance, and consider using TI's TINA-TI SPICE simulator or other design tools to aid in the configuration process.
The TMUX6234RRQR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or heat sink, and to maintain a reasonable ambient temperature. You should also consider the thermal resistance of the PCB and the device's power dissipation to prevent overheating.
To troubleshoot issues with the TMUX6234RRQR, start by verifying the device's configuration and settings. Check for proper power supply, clock signal, and input signal integrity. Use oscilloscopes or logic analyzers to monitor the signals and identify any anomalies. Consult the datasheet, application notes, and TI's support resources for guidance on troubleshooting specific issues.
Yes, the TMUX6234RRQR is a high-frequency device, and proper EMI/EMC design practices are crucial to ensure reliable operation. Use shielding, filtering, and grounding techniques to minimize electromagnetic interference. Follow TI's recommendations for PCB layout, component selection, and shielding to reduce EMI/EMC issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX6234RRQR Overview

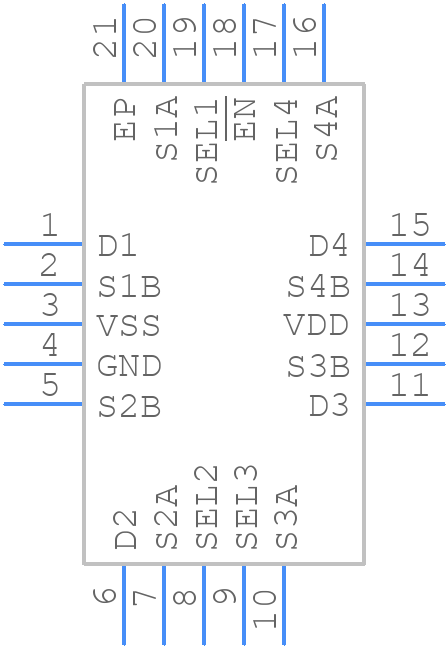

Use the download button to access the TMUX6234RRQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX6,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
