Texas Instruments recommends following a star-topology layout, keeping the signal traces short and away from power planes, and using a solid ground plane to minimize signal integrity issues. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and crosstalk.
For high-frequency signals, it's essential to use a low-impedance output driver, ensure proper termination, and use a high-frequency capable PCB material. Additionally, the TMUX7236RUMR's internal capacitance should be considered, and the device should be operated within its specified bandwidth to minimize signal degradation.
The TMUX7236RUMR is rated for operation from -40°C to 125°C. Operating the device outside this range can affect its performance, including increased power consumption, reduced bandwidth, and decreased signal integrity. It's essential to ensure proper thermal management and heat dissipation to maintain optimal performance.
To ensure EMI compliance, follow proper PCB layout and routing guidelines, use shielding and grounding techniques, and consider using EMI filters or common-mode chokes. Additionally, the TMUX7236RUMR's built-in EMI filtering capabilities can be utilized by following the recommended layout and configuration guidelines.
Texas Instruments recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, with a minimum of 10nF and 10uF capacitors, respectively. Additionally, using a ferrite bead or a pi-filter can help reduce noise and ripple on the power supply lines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX7236RUMR Overview

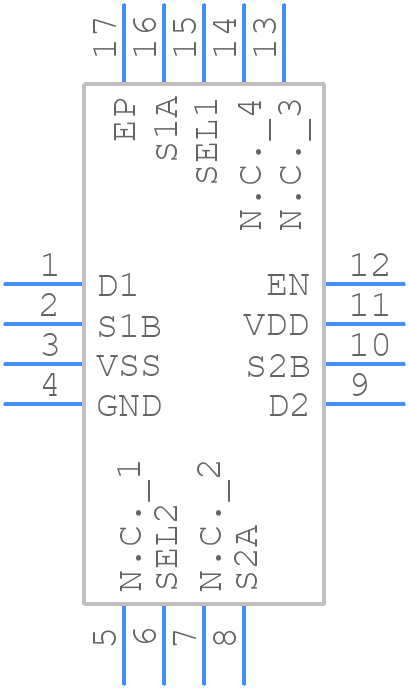

Use the download button to access the TMUX7236RUMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX7,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
