CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
0.6 mA
Supply Voltage-Max (Vsup):
44 V
Supply Voltage-Min (Vsup):
5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm
TMUX7462FRRPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to minimize crosstalk.
To minimize high-frequency noise and EMI, use a low-pass filter at the input, and consider adding a ferrite bead or a common-mode choke to the output. Also, ensure that the device is properly decoupled, and the power supply is clean and well-regulated. Shielding the device and using a ground plane can also help reduce EMI.
The TMUX7462FRRPR is specified to operate up to 10 GHz, but the actual operating frequency may be limited by the specific application, PCB layout, and signal integrity. It's essential to evaluate the device's performance in your specific design and consider factors like signal attenuation, reflections, and crosstalk.
To ensure signal integrity, use controlled impedance traces, and maintain a consistent impedance throughout the signal path. Minimize the use of vias and connectors, and use high-quality components with low insertion loss. Also, consider using signal conditioning circuits, such as amplifiers or equalizers, to compensate for signal loss and distortion.
A good decoupling scheme is essential to ensure the device's stability and performance. Use a combination of ceramic and electrolytic capacitors, with a total capacitance of at least 10 μF, and place them as close to the device as possible. Also, consider adding a ferrite bead or a choke to the power supply lines to filter out high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX7462FRRPR Overview

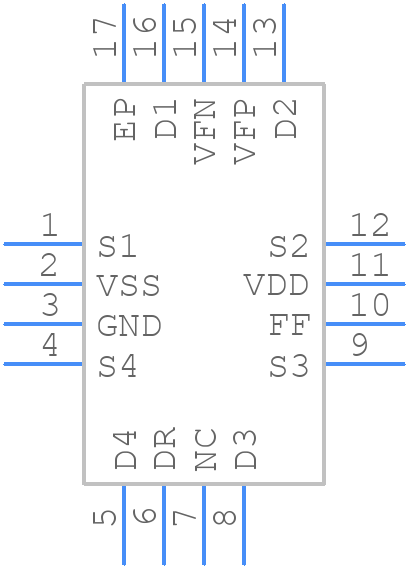

Use the download button to access the TMUX7462FRRPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX7,
or try a keyword search, such as Multiplexers or Switches
