Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure signal integrity.
The TMUX9616PTR is a programmable device, and the voltage levels can be configured using the I2C interface. Refer to the datasheet for the specific register settings and voltage level configurations.
The TMUX9616PTR is designed to operate up to 10 GHz, but the actual frequency of operation depends on the specific application and signal conditions. It's essential to evaluate the device's performance in your specific use case.
To minimize signal loss, use high-quality PCB materials, keep signal traces short, and use impedance-matched transmission lines. Additionally, consider using signal conditioning components, such as terminations or attenuators, to optimize signal quality.
The power consumption of the TMUX9616PTR depends on the specific configuration and operating conditions. Refer to the datasheet for the typical power consumption values. The device can be powered using a single 1.8V or 3.3V supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a stable power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX9616PTR Overview

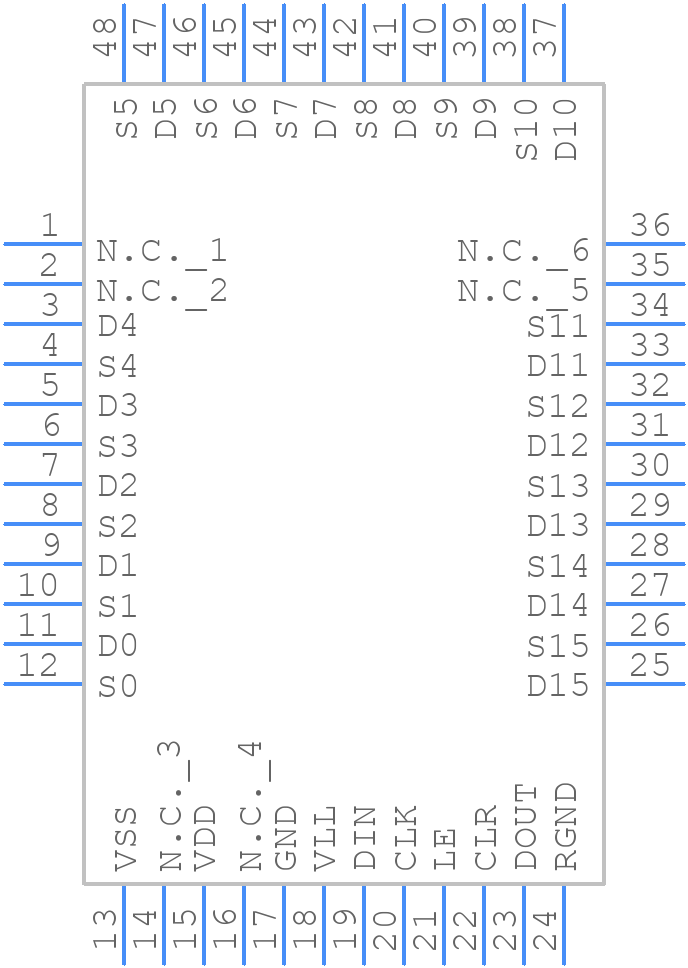

Use the download button to access the TMUX9616PTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX9,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
