Description:The TMUXHS4412 is a high-speed bidirectional passive switch which can be used for both multiplexer (mux) and demultiplexer (demux) configurations. The TMUXHS4412 is a analog differential passive mux or demux that works for many high-speed differential interfaces for data rates up to 20 Gbps including PCI Express 4.0. The device can be used for higher data rates where electrical channel has signal integrity margins. The TMUXHS4412 supports differential signaling with common mode voltage range (CMV)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To minimize signal integrity issues, use differential signaling, and ensure that the signal traces are impedance-matched and length-matched. Also, use a common-mode filter or a common-mode choke to reduce electromagnetic interference (EMI). Additionally, consider using a signal integrity analysis tool to simulate and optimize the design.
The maximum operating temperature range for the TMUXHS4412RUAT is -40°C to 125°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
To configure the TMUXHS4412RUAT for optimal power consumption, use the lowest possible supply voltage (VCC) and adjust the output current (IO) according to the application's requirements. Additionally, consider using the device's power-down mode (PD) to reduce power consumption when the device is not in use.
The recommended termination resistors for the differential signals depend on the specific application and the signal frequency. As a general guideline, use 50-ohm termination resistors for high-speed signals (above 100 MHz) and 100-ohm termination resistors for lower-speed signals (below 100 MHz). However, it's recommended to consult the datasheet and application notes for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUXHS4412RUAT Overview

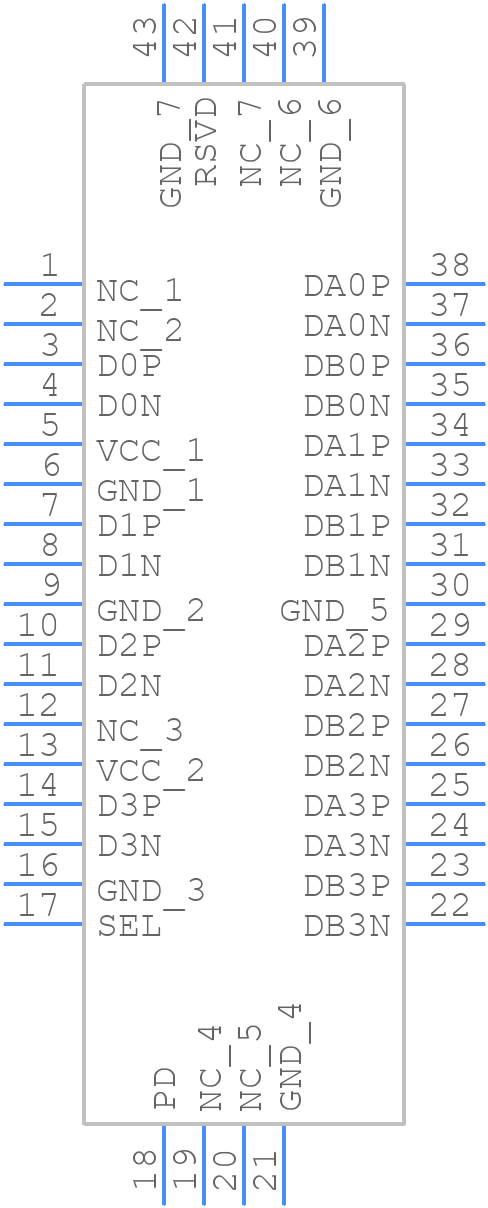

Use the download button to access the TMUXHS4412RUAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUXH,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
