The maximum switching frequency of the TN2-12V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The TN2-12V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to derate the relay's specifications according to the temperature derating curve provided in the datasheet.
To ensure proper driving and control of the TN2-12V relay, it's recommended to use a suitable driver circuit that can provide the required voltage and current to the relay's coil. Additionally, consider using a flyback diode to protect the driver circuit from back-EMF generated by the relay's coil.
The expected lifespan of the TN2-12V relay is 100,000 to 200,000 cycles, depending on the operating conditions and usage. However, the relay's lifespan can be affected by factors such as switching frequency, load type, and environmental conditions.
The TN2-12V relay is not designed for use in safety-critical applications. If you need a relay for a safety-critical application, consider using a relay that meets the required safety standards and certifications, such as IEC 61508 or UL 508.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TN2-12V Overview

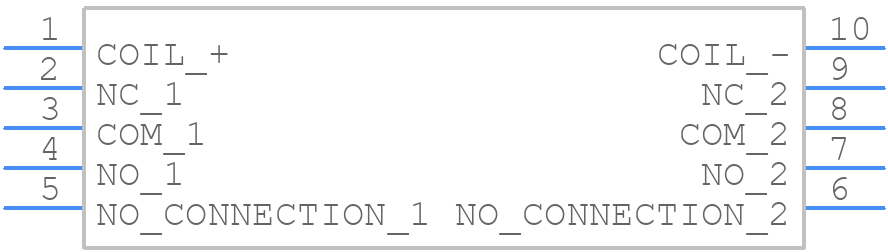

Use the download button to access the TN2-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TN2-1,
or try a keyword search, such as Power/Signal Relays
