TND14V-621KB00AAA0 - Chemi-Con

Description: 620 V 5 kA Varistor 1 Circuit Through Hole Disc 14mm, 136J, -40°C ~ 85°C

Download TND14V-621KB00AAA0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TND14V-621KB00AAA0 - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

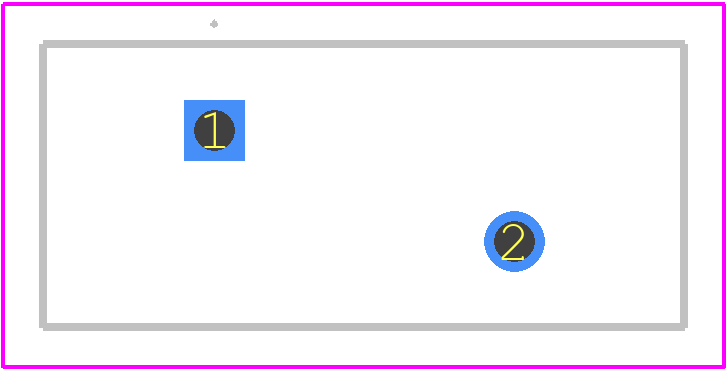

TND14V-621KB00AAA0 - Chemi-Con PCB footprint - Other - Other - 16mm x 7.1mm
click to zoom
3D Models
TND14V-621KB00AAA0 - Chemi-Con - 3D model - Other - 16mm x 7.1mm
click to zoom

TND14V-621KB00AAA0 Details

  • Manufacturer Part Number:

    TND14V-621KB00AAA0

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    1

  • Circuit RMS Voltage-Max:

    385 V

  • Energy Absorbing Capacity-Max:

    136 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    19 mm

  • Package Length:

    16 mm

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Package Width:

    7.1 mm

  • Packing Method:

    Bulk

  • Rated Power Dissipation (P):

    0.6 W

  • Reference Standard:

    CSA; UL; VDE

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Working Voltage:

    505 V

TND14V-621KB00AAA0 Frequently Asked Questions (FAQs)

  • Chemi-Con recommends a voltage derating of 80% to ensure reliable operation and to prevent overheating.
  • The ESR of the TND14V-621KB00AAA0 capacitor decreases with increasing frequency, but the exact values can be obtained from Chemi-Con's application notes or by contacting their technical support.
  • The maximum ripple current rating for the TND14V-621KB00AAA0 capacitor is 3.5A RMS at 100kHz, but this value can be affected by the operating temperature and other factors.
  • Yes, the TND14V-621KB00AAA0 capacitor is designed for high-reliability applications and meets the requirements of various industry standards, including MIL-STD-202 and IEC 60384-4.
  • The TND14V-621KB00AAA0 capacitor has an MSL rating of 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking or other special handling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TND14V-621KB00AAA0 Overview

Use the download button to access the TND14V-621KB00AAA0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TND14, or try a keyword search, such as Varistor
