Texas Instruments provides a recommended PCB layout in the TNETE2201BPHD evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TNETE2201BPHD is a highly configurable device that supports various Ethernet protocols, including IEEE 802.1Q, IEEE 802.1p, and VLAN. Configuration is done through the device's registers, which can be accessed through the SPI or I2C interface. Refer to the device's programming guide and application notes for specific configuration examples.
The TNETE2201BPHD supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application, cable quality, and environmental conditions.
Texas Instruments provides a troubleshooting guide for the TNETE2201BPHD, which includes steps to identify and resolve common issues, such as link faults, packet loss, and PHY-related problems. Additionally, the device's built-in diagnostic features, such as the built-in self-test (BIST) and loopback modes, can be used to aid in troubleshooting.
The TNETE2201BPHD is a high-power device that requires proper thermal management to ensure reliable operation. Thermal management considerations include providing adequate heat sinking, using thermal vias, and ensuring good airflow around the device. Refer to the device's thermal design guide for specific recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNETE2201BPHD Overview

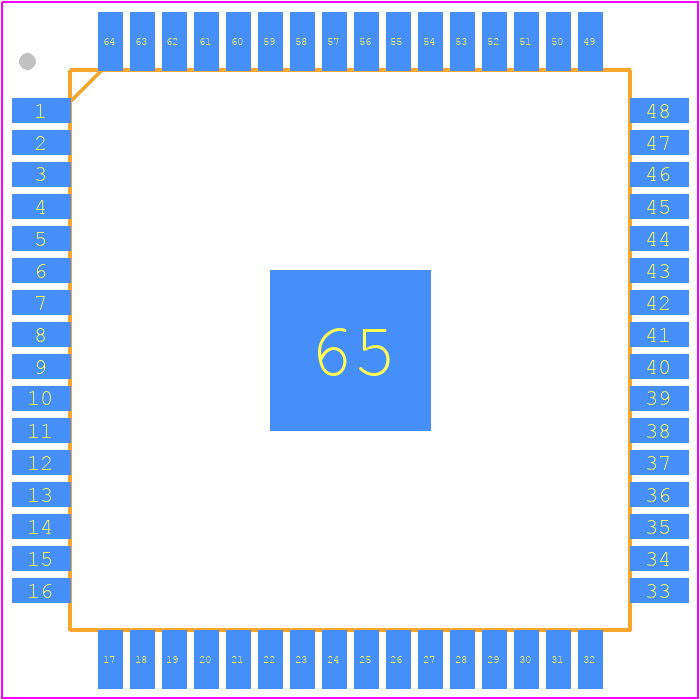

Use the download button to access the TNETE2201BPHD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNETE,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
