The TNY253GN is a 25-watt offline switcher IC, so it can handle up to 25 watts of output power.
To ensure the TNY253GN operates within its SOA, follow the guidelines in the datasheet for maximum voltage, current, and power dissipation. Also, make sure to provide adequate heat sinking and thermal management.
The BYPASS pin is used to connect an external bypass capacitor to the internal voltage regulator. This helps to reduce noise and improve the overall stability of the IC.
When selecting a transformer for your TNY253GN-based design, consider factors such as the input voltage, output voltage, and power rating. The transformer's turns ratio, magnetizing inductance, and leakage inductance also play a crucial role in the design.
For optimal performance and thermal management, ensure good PCB layout practices such as separating high-voltage and low-voltage sections, using thermal vias, and providing adequate heat sinking and airflow around the IC.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNY253GN Overview

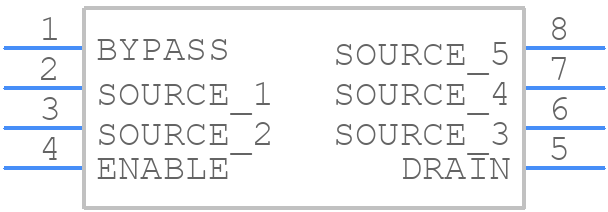

Use the download button to access the TNY253GN schematic symbol and PCB footprint.
