TNY255GN-TL - Power Integrations

Description: AC/DC Converters 6.5W 85-265 VAC 10W 100/115/230 VAC

Download TNY255GN-TL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

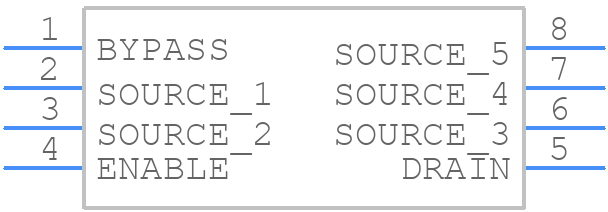

TNY255GN-TL - Power Integrations - PCB symbol
click to zoom
PCB Footprints
TNY255GN-TL - Power Integrations PCB footprint - Other - Other - TNY255GN-TL-3
click to zoom

TNY255GN-TL Details

  • Manufacturer Part Number:

    TNY255GN-TL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-G8

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    GWDIP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    0.265 mA

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

TNY255GN-TL Frequently Asked Questions (FAQs)

  • The maximum ambient temperature range for the TNY255GN-TL is -40°C to 125°C.
  • Proper cooling can be achieved by providing a heat sink with a thermal resistance of 10°C/W or less, and ensuring good airflow around the device.
  • The recommended input capacitor value for the TNY255GN-TL is 1-10uF, depending on the specific application and input voltage.
  • Yes, the TNY255GN-TL can be used in a flyback converter topology, but it is primarily designed for offline switch-mode power supplies.
  • The maximum output power of the TNY255GN-TL can be calculated by multiplying the maximum output voltage by the maximum output current, taking into account the device's efficiency and thermal limitations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TNY255GN-TL Overview

Use the download button to access the TNY255GN-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY25, or try a keyword search, such as Power Management Circuits
