TNY266PN - Power Integrations

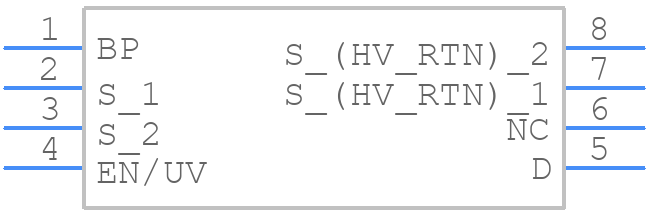

TNY266PN Details

• Manufacturer Part Number:

  TNY266PN

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Power Integrations

• YTEOL:

  3

• Additional Feature:

  REQUIRES AN AC SUPPLY OF 85 TO 265 V

• Analog IC - Other Type:

  LOAD SWITCH

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• JESD-30 Code:

  R-PDIP-T7

• JESD-609 Code:

  e3

• Length:

  9.575 mm

• Number of Functions:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.56 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP7/8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Surface Mount:

  NO

• Switcher Configuration:

  SINGLE

• Switching Frequency-Max:

  140 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Width:

  7.62 mm
