The TNY267PN is a 6.5W offline switcher IC, and its maximum output power depends on the input voltage, output voltage, and other design parameters. However, as a general guideline, it can handle up to 6.5W of output power with a suitable transformer and component selection.
To ensure the TNY267PN operates within its SOA, follow the guidelines in the datasheet for maximum drain-source voltage, drain current, and power dissipation. Also, ensure proper thermal management, such as using a suitable heat sink and layout, to keep the junction temperature within the recommended range.
The recommended transformer design for the TNY267PN involves selecting a transformer with a suitable turns ratio, core material, and winding configuration. Power Integrations provides a transformer design guide and examples in the datasheet and application notes. It's essential to follow these guidelines to ensure optimal performance and efficiency.
To optimize the TNY267PN for low standby power consumption, follow the guidelines in the datasheet for minimizing quiescent current. This includes selecting a suitable bias winding, optimizing the transformer design, and using low-power components. Additionally, consider using a low-standby-power mode, such as the 'burst mode' feature, to reduce power consumption during idle periods.
When designing an EMI filter for the TNY267PN, consider the following key factors: filter topology, component selection, and layout. Ensure the filter is designed to meet the relevant EMI standards, such as CISPR 22 and FCC Part 15. Follow the guidelines in the datasheet and application notes for EMI filter design and layout recommendations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNY267PN Overview

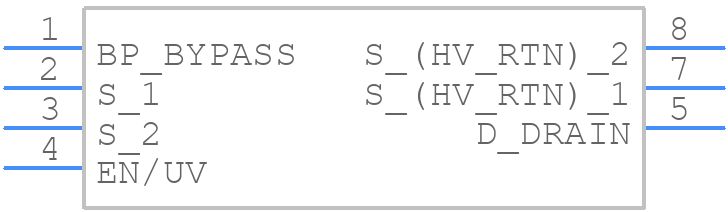

Use the download button to access the TNY267PN schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY26,
or try a keyword search, such as Switching Regulator or Controllers
