TNY268P - Power Integrations

Description: IC OFFLINE SWIT OTP OCP HV 8DIP

Download TNY268P Model

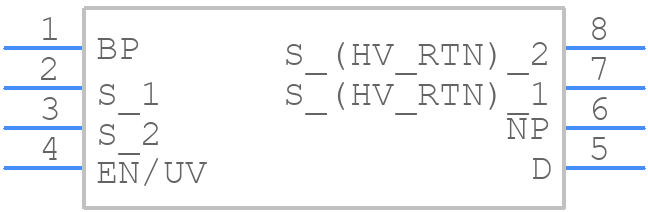

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TNY268P - Power Integrations PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-8(H=4.7)
click to zoom
3D Models
TNY268P - Power Integrations  - 3D model - Dual-In-Line Packages - PDIP-8(H=4.7)
click to zoom

TNY268P Details

  • Manufacturer Part Number:

    TNY268P

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Power Integrations

  • YTEOL:

    0

  • Additional Feature:

    REQUIRES AN AC SUPPLY OF 85 TO 265 V

  • Analog IC - Other Type:

    LOAD SWITCH

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    R-PDIP-T7

  • JESD-609 Code:

    e0

  • Length:

    9.575 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.88 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.73 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    140 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TNY268P Frequently Asked Questions (FAQs)

  • The TNY268P is a 6.5W offline switcher IC, but the maximum output power depends on the specific application and design. Typically, it can handle up to 5W of output power with a suitable transformer and component selection.
  • The TNY268P has a specified operating temperature range of -40°C to 150°C. Ensure proper heat sinking, avoid overheating, and follow the recommended PCB layout guidelines to maintain a safe operating temperature.
  • The BYPASS pin is used to bypass the internal voltage regulator and connect an external voltage source. This pin can be used to improve efficiency or to power external circuits. Connect an external voltage source to the BYPASS pin, and ensure the voltage is within the specified range (4.5V to 14V).
  • Select a transformer with a suitable turns ratio, core material, and wire size. Consider factors like output power, input voltage, and desired output voltage. Consult the TNY268P datasheet and application notes for guidance on transformer selection and design.
  • Follow the recommended PCB layout guidelines in the datasheet and application notes. Keep the high-voltage and low-voltage sections separate, use a solid ground plane, and place components to minimize electromagnetic interference (EMI) and noise.
