The maximum output power of the TNY277PG is 27W, but it can be derated based on the input voltage, output voltage, and ambient temperature.
To ensure the TNY277PG operates within its SOA, follow the guidelines in the datasheet for input voltage, output voltage, output current, and ambient temperature. Also, make sure to provide adequate heat sinking and thermal management.
The BYPASS pin is used to connect a bypass capacitor to the internal voltage regulator. This helps to reduce the noise and ripple on the internal voltage regulator output, ensuring stable operation of the IC.
When selecting a transformer for the TNY277PG, consider the input voltage, output voltage, and power rating. The transformer should be designed to handle the maximum output power of the IC, and its turns ratio should be chosen to achieve the desired output voltage.
For optimal performance and reliability, follow the recommended PCB layout and design guidelines in the datasheet, including keeping the input and output stages separate, using a solid ground plane, and minimizing loop areas.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNY277PG Overview

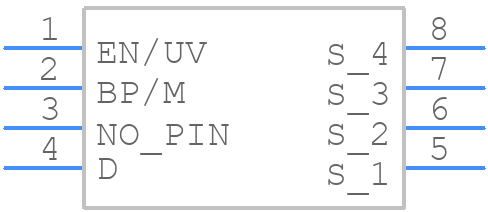

Use the download button to access the TNY277PG schematic symbol, PCB footprint, and 3D model.
