TNY277PN - Power Integrations

Description: AC/DC Converters 18.5W 85-265 VAC 23.5W/230 VAC

Download TNY277PN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

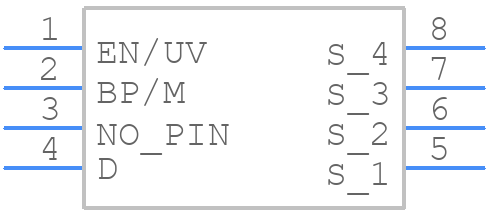

TNY277PN - Power Integrations - PCB symbol
click to zoom
PCB Footprints
TNY277PN - Power Integrations PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP_08
click to zoom
3D Models
TNY277PN - Power Integrations - 3D model - Dual-In-Line Packages - DIP_08
click to zoom

TNY277PN Details

  • Manufacturer Part Number:

    TNY277PN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDIP-T7

  • JESD-609 Code:

    e3

  • Length:

    9.575 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    265 V

  • Supply Voltage-Min (Vsup):

    85 V

  • Supply Voltage-Nom (Vsup):

    230 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.6V

  • Width:

    7.62 mm

TNY277PN Frequently Asked Questions (FAQs)

  • The TNY277PN is a 277V, 27W offline switcher IC, so it can handle up to 27W of output power.
  • To ensure the TNY277PN operates within its SOA, follow the guidelines in the datasheet for maximum drain-source voltage, drain current, and power dissipation. Also, ensure proper thermal management and heat sinking.
  • The BYPASS pin is used to connect an external bypass capacitor to filter the internal voltage regulator output, reducing noise and improving overall system stability.
  • Choose a transformer with a suitable turns ratio, core material, and wire size to ensure efficient energy transfer and minimal losses. Consult the datasheet and application notes for guidance on transformer selection.
  • Follow the recommended PCB layout guidelines in the datasheet and application notes to minimize electromagnetic interference (EMI), ensure proper heat sinking, and reduce parasitic inductances.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TNY277PN Overview

Use the download button to access the TNY277PN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY27, or try a keyword search, such as Power Management Circuits
