TNY284DG-TL - Power Integrations

Description: AC/DC Converters 8.5 W (85-265 VAC) 11 W (230 VAC)

Download TNY284DG-TL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

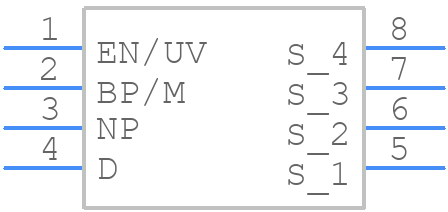

TNY284DG-TL - Power Integrations - PCB symbol
click to zoom
PCB Footprints
TNY284DG-TL - Power Integrations PCB footprint - Small Outline Packages - Small Outline Packages - TNY284DG-TL
click to zoom
3D Models
TNY284DG-TL - Power Integrations - 3D model - Small Outline Packages - TNY284DG-TL
click to zoom

TNY284DG-TL Details

  • Manufacturer Part Number:

    TNY284DG-TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    6

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

TNY284DG-TL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TNY284DG-TL is -40°C to 125°C.
  • Proper cooling can be achieved by providing a heat sink or a thermal pad on the device, and ensuring good airflow around the device.
  • The recommended input capacitor value for the TNY284DG-TL is 10uF to 22uF, depending on the specific application and input voltage.
  • Yes, the TNY284DG-TL is designed to operate in humid environments, but it's recommended to follow proper PCB design and assembly guidelines to prevent moisture-related issues.
  • Troubleshooting issues with the TNY284DG-TL typically involves checking the input voltage, output voltage, and current, as well as verifying proper PCB layout and component selection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TNY284DG-TL Overview

Use the download button to access the TNY284DG-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY28, or try a keyword search, such as Power Management Circuits
