The TNY284PG is a 28W offline switcher IC, but the maximum output power depends on the specific application and design. However, as a general guideline, it can handle up to 20W of output power with proper thermal design and component selection.
To ensure the TNY284PG operates within its SOA, follow the guidelines in the datasheet for maximum voltage, current, and power dissipation. Additionally, ensure proper thermal design, including a suitable heat sink and thermal interface material, and monitor the IC's temperature during operation.
For optimal performance and reliability, follow the recommended layout and PCB design guidelines in the datasheet and application notes. Key considerations include minimizing loop areas, using a solid ground plane, and placing components to minimize noise and EMI.
To minimize standby power consumption, ensure that the IC is in a low-power mode during standby, and use a low-voltage, low-current bias supply. Additionally, consider using a high-impedance bias supply and optimizing the transformer design for low magnetizing current.
When designing an EMI filter for the TNY284PG, consider the frequency range of interest, the desired attenuation, and the component selection. Use a common-mode choke and Y-capacitors to filter common-mode noise, and ensure the filter is properly grounded and shielded.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNY284PG Overview

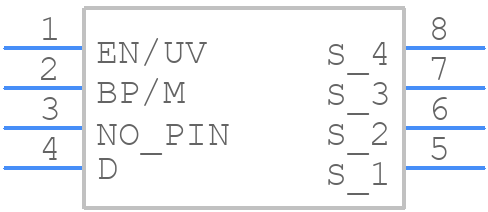

Use the download button to access the TNY284PG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY28,
or try a keyword search, such as Power Management Circuits
