The TNY285DG is a 5W offline switcher IC, and the maximum output power depends on the specific application and design. However, as a general guideline, the IC can handle up to 5W of output power with proper thermal management and design considerations.
To ensure the TNY285DG operates within its SOA, follow the guidelines in the datasheet for maximum voltage, current, and power dissipation. Additionally, ensure proper thermal management, such as using a heat sink and keeping the junction temperature below 150°C.
The recommended input capacitor value is 1-2uF, X7R or X5R type, with a voltage rating of at least 1.5 times the maximum input voltage. This ensures stable operation and minimizes input voltage ripple.
Optimize the transformer design by following the guidelines in the datasheet and application notes. Key considerations include selecting the correct core material, turns ratio, and wire size to minimize losses and ensure efficient energy transfer.
The BYPASS pin is used to connect an external bypass capacitor to the internal voltage regulator. This helps to reduce noise and improve the overall power supply rejection ratio (PSRR) of the IC.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNY285DG Overview

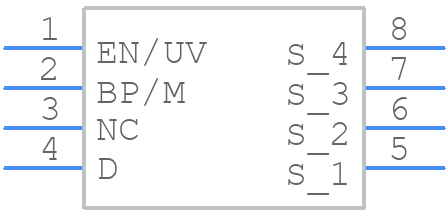

Use the download button to access the TNY285DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY28,
or try a keyword search, such as Power Management Circuits
