TNY285PG - Power Integrations

Description: Power Integrations TNY285PG, AC-DC Converter, Minimum of 50 V dc, DIP-8C 7-Pin

Download TNY285PG Model

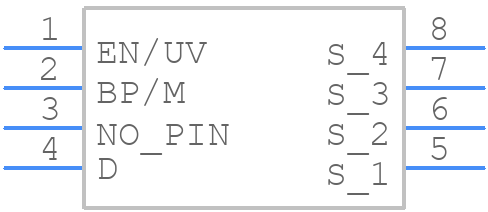

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TNY285PG - Power Integrations PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-8C (P Package)
click to zoom
3D Models
TNY285PG - Power Integrations  - 3D model - Dual-In-Line Packages - PDIP-8C (P Package)
click to zoom

TNY285PG Details

  • Manufacturer Part Number:

    TNY285PG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    8

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn)

TNY285PG Frequently Asked Questions (FAQs)

  • The TNY285PG can handle up to 25W of output power, making it suitable for a wide range of applications, including chargers, adapters, and power supplies.
  • To ensure the TNY285PG operates within its SOA, follow the guidelines outlined in the datasheet, including keeping the input voltage within the recommended range, using the recommended transformer turns ratio, and ensuring the output voltage is within the specified range.
  • The BYPASS pin is used to connect an external capacitor to bypass the internal voltage regulator, allowing the device to operate in a low-power mode and reducing standby power consumption.
  • To optimize the transformer design, follow the guidelines outlined in the datasheet, including selecting the correct core material, turns ratio, and wire size, and ensuring the transformer is designed to operate within the recommended frequency range.
  • To ensure optimal performance and minimize electromagnetic interference (EMI), follow the recommended layout and placement guidelines outlined in the datasheet, including keeping the input and output stages separate, using a solid ground plane, and minimizing loop areas.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TNY285PG Overview

Use the download button to access the TNY285PG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY28, or try a keyword search, such as Power Management Circuits
