TNY286DG - Power Integrations

Description: POWER INTEGRATIONS - TNY286DG - AC/DC Off-Line Switcher IC, TinySwitch-4 Family, Flyback, 85 VAC - 265 VAC, 15 W, SOIC-7

Download TNY286DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

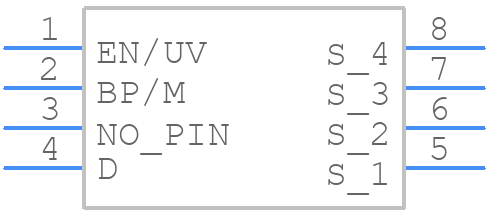

TNY286DG - Power Integrations - PCB symbol
click to zoom
PCB Footprints
TNY286DG - Power Integrations PCB footprint - Small Outline Packages - Small Outline Packages - ---SO-8 (D Package)---
click to zoom
3D Models
TNY286DG - Power Integrations - 3D model - Small Outline Packages - ---SO-8 (D Package)---
click to zoom

TNY286DG Details

  • Manufacturer Part Number:

    TNY286DG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Power Integrations

  • YTEOL:

    8

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Matte Tin (Sn)

TNY286DG Frequently Asked Questions (FAQs)

  • The TNY286DG is a 6-pin, energy-efficient, offline switcher IC that can handle up to 6.5 W of output power.
  • The TNY286DG has a built-in overvoltage protection (OVP) circuit that detects and responds to voltage spikes, ensuring safe operation and protecting the IC from damage.
  • The BYPASS pin is used to connect an external bypass capacitor to the internal voltage regulator, allowing the IC to operate in a low-power mode and reducing standby power consumption.
  • The TNY286DG is suitable for both isolated and non-isolated applications, making it a versatile option for a wide range of power supply designs.
  • The TNY286DG has a built-in thermal protection circuit that monitors the IC's temperature and shuts down the device if it exceeds a certain threshold, preventing damage from overheating.
