Part Image

TNY286KG-TL - Power Integrations

Description: AC/DC Converters 15 W (85-265 VAC) 19 W (230 VAC)

Download TNY286KG-TL Model

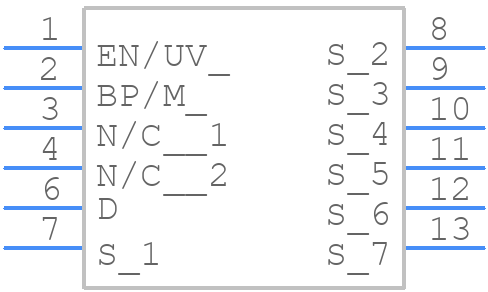

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TNY286KG-TL - Power Integrations PCB footprint - Other - Other - eSOP-12B  (K Package)
click to zoom
3D Models
TNY286KG-TL - Power Integrations  - 3D model - Other - eSOP-12B  (K Package)
click to zoom

TNY286KG-TL Details

  • Manufacturer Part Number:

    TNY286KG-TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    eSOP-12/11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    8

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G11

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP11,.4,70

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.49 mm

  • Supply Voltage-Max (Vsup):

    265 V

  • Supply Voltage-Min (Vsup):

    85 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.78 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    8.89 mm

TNY286KG-TL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TNY286KG-TL is -40°C to 125°C.
  • To ensure proper biasing, connect a 1-2 kΩ resistor between the BYPASS pin and the VIN pin, and a 10-22 μF capacitor between the BYPASS pin and GND.
  • The recommended input capacitor value is 10-22 μF, with an X7R or X5R dielectric, and a voltage rating of 10-16 V.
  • The output voltage can be calculated using the formula: Vout = (R2 / R1) * (VIN - Vf), where R1 and R2 are the feedback resistors, VIN is the input voltage, and Vf is the forward voltage drop of the output diode.
  • The maximum output current capability of the TNY286KG-TL is 24 A peak, and 12 A average.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TNY286KG-TL Overview

Use the download button to access the TNY286KG-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY28, or try a keyword search, such as Power Management Circuits
