The maximum output power of the TNY288DG-TL depends on the input voltage, output voltage, and the transformer turns ratio. However, according to the datasheet, the maximum output power is typically around 8-10W.
To ensure the TNY288DG-TL operates within the safe operating area (SOA), follow the guidelines in the datasheet for maximum input voltage, output current, and power dissipation. Additionally, ensure proper thermal management and heat sinking to prevent overheating.
For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, including keeping the input and output pins separate, using a solid ground plane, and providing adequate heat sinking and thermal vias.
When selecting a transformer for the TNY288DG-TL, consider the input voltage, output voltage, and power rating. Choose a transformer with a suitable turns ratio, core material, and wire gauge to ensure efficient energy transfer and minimal losses.
To minimize EMI and noise with the TNY288DG-TL, use a suitable EMI filter, such as a common-mode choke and capacitors, and ensure proper PCB layout and grounding. Additionally, consider using shielding and snubbers to reduce radiated emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNY288DG-TL Overview

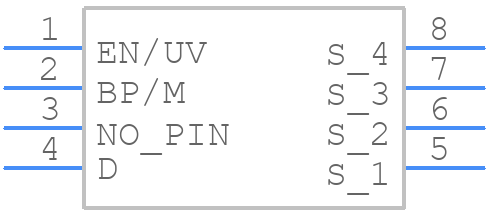

Use the download button to access the TNY288DG-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY28,
or try a keyword search, such as Power Management Circuits
