The maximum output power of the TNY288DG depends on the input voltage, output voltage, and current. However, according to the datasheet, the maximum output power is typically around 24W with a 230VAC input and 12V output.
To ensure the TNY288DG operates within its SOA, follow the guidelines in the datasheet for maximum input voltage, output current, and power dissipation. Additionally, ensure proper thermal management, such as using a heat sink, and follow the recommended PCB layout and component placement.
The BYPASS pin is used to connect a bypass capacitor to the internal voltage regulator. This pin is used to improve the power supply rejection ratio (PSRR) and reduce the output voltage ripple.
When selecting a transformer for use with the TNY288DG, consider the input voltage, output voltage, and power rating. Ensure the transformer's voltage rating, current rating, and turns ratio are compatible with the TNY288DG's specifications. Consult the datasheet and application notes for guidance.
The recommended PCB layout and component placement for the TNY288DG can be found in the datasheet and application notes. Key considerations include keeping the input and output stages separate, using a ground plane, and placing components to minimize electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNY288DG Overview

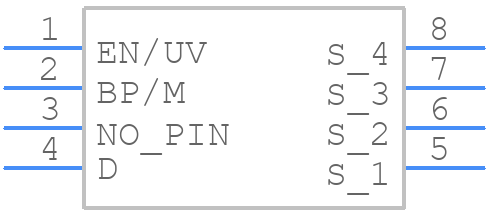

Use the download button to access the TNY288DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY28,
or try a keyword search, such as Power Management Circuits
