- Part Number TNY288PG
- Manufacturer Power Integrations
- Pin Count 8
- Part Category Power Supply
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - TNY288PG
- Released Date Apr 28, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TNY288PG Details
-
Manufacturer Part Number:
TNY288PG
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
Power Integrations
-
YTEOL:
8
-
Analog IC - Other Type:
VOLTAGE SUPERVISOR/RESET IC
-
JESD-609 Code:
e3
-
Peak Reflow Temperature (Cel):
NOT SPECIFIED
TNY288PG Frequently Asked Questions (FAQs)
-
The maximum output power of the TNY288PG depends on the input voltage, output voltage, and other design parameters. However, Power Integrations recommends a maximum output power of 8W for the TNY288PG.
-
To ensure the TNY288PG operates within its SOA, follow the guidelines in the datasheet for input voltage, output voltage, and output current. Additionally, ensure that the device is properly cooled and that the thermal design is adequate for the application.
-
Power Integrations provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help ensure optimal performance and reliability.
-
To troubleshoot issues with the TNY288PG, follow a systematic approach: 1) Verify the input voltage and current, 2) Check the output voltage and current, 3) Verify the thermal design and cooling, and 4) Consult the datasheet and application notes for guidance.
-
The TNY288PG is rated for operation up to 85°C ambient temperature. However, the device's performance and reliability may be affected at high temperatures. Consult the datasheet and application notes for guidance on thermal design and derating.
Trust Checks
Community Provided
System Verified
Community Approved
TNY288PG Overview

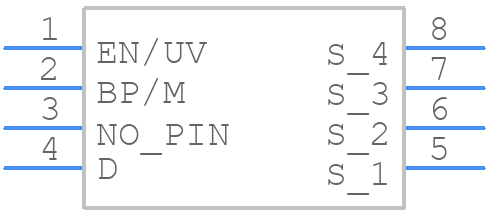

Use the download button to access the TNY288PG schematic symbol, PCB footprint, and 3D model.
