The TNY290KG can deliver up to 90W of output power, making it suitable for a wide range of applications, including LED lighting, battery charging, and power adapters.
The TNY290KG has built-in overvoltage protection (OVP) that detects and responds to voltage surges, ensuring the safety and reliability of the system. The OVP threshold is typically set at 130% of the nominal input voltage.
The BYPASS pin is used to connect a bypass capacitor that filters the internal voltage reference, reducing noise and improving the overall stability of the power supply. It is recommended to use a 1uF ceramic capacitor for this purpose.
The TNY290KG has a built-in thermal shutdown feature that protects the device from overheating. However, it is still important to ensure good thermal design and heat sinking to keep the junction temperature below 150°C. A thermal pad on the package helps to dissipate heat efficiently.
The TNY290KG is a non-isolated offline switcher, meaning it is not suitable for isolated applications. However, it can be used in non-isolated applications such as buck converters, flyback converters, and other types of offline power supplies.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNY290KG Overview

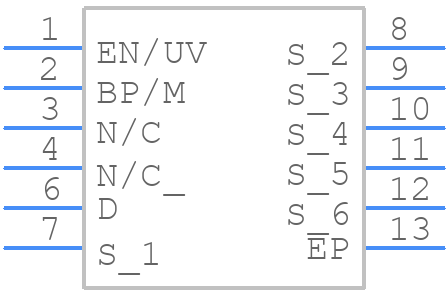

Use the download button to access the TNY290KG schematic symbol, PCB footprint, and 3D model.
