Toshiba recommends a PCB layout with a solid ground plane, minimal trace length, and a decoupling capacitor (e.g., 100nF) between VCC and GND to reduce noise and ensure stable operation.
The TODX2701A(F) has a thermal pad on the bottom of the package. Ensure good thermal conductivity by using a thermal interface material (e.g., thermal tape or thermal grease) and a heat sink or metal plate on the PCB. Keep the ambient temperature below 85°C for reliable operation.
Although the datasheet specifies a maximum input voltage of VCC + 0.5V, it's recommended to limit the input voltage to VCC + 0.3V to ensure reliable operation and prevent latch-up or damage to the device.
While the TODX2701A(F) is designed for high-speed operation, its performance may degrade above 100 MHz. For high-frequency applications, consider using a more suitable device, such as the Toshiba TCX2701A(F), which is optimized for high-frequency operation.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing trace length, and adding bypass capacitors. Additionally, consider using shielding or a metal enclosure to reduce electromagnetic radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TODX2701A(F) Overview

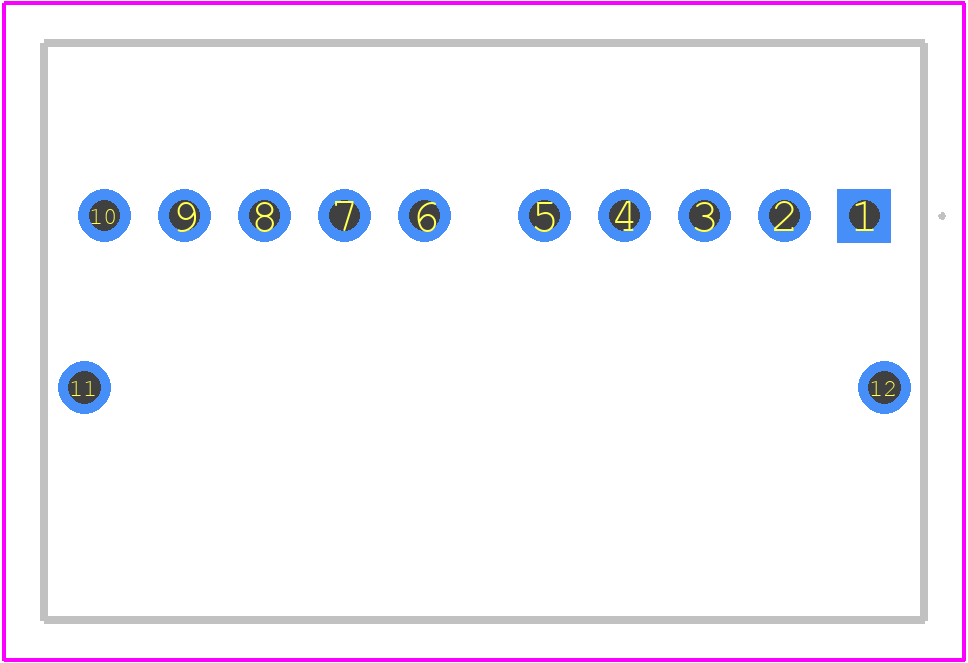

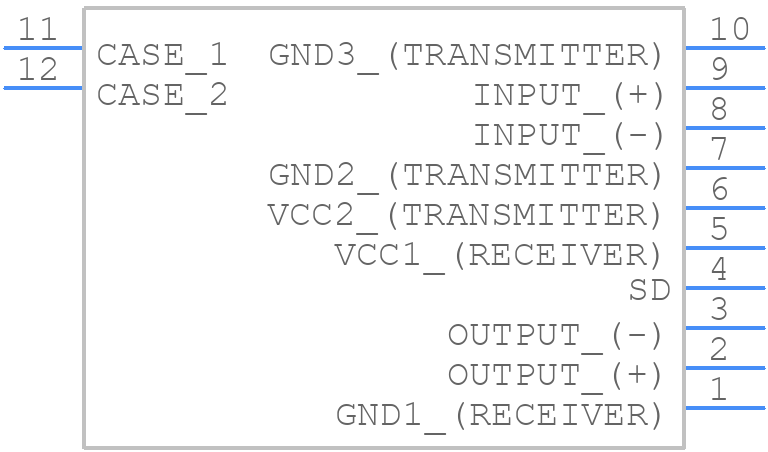

Use the download button to access the TODX2701A(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TODX2,
or try a keyword search, such as Fiber Optic Transceivers
