TODX2950A(F) - Toshiba

Description: Fiber-Coupler(TOSLINK), DC to 10 Mbps, Transceiver

Download TODX2950A(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

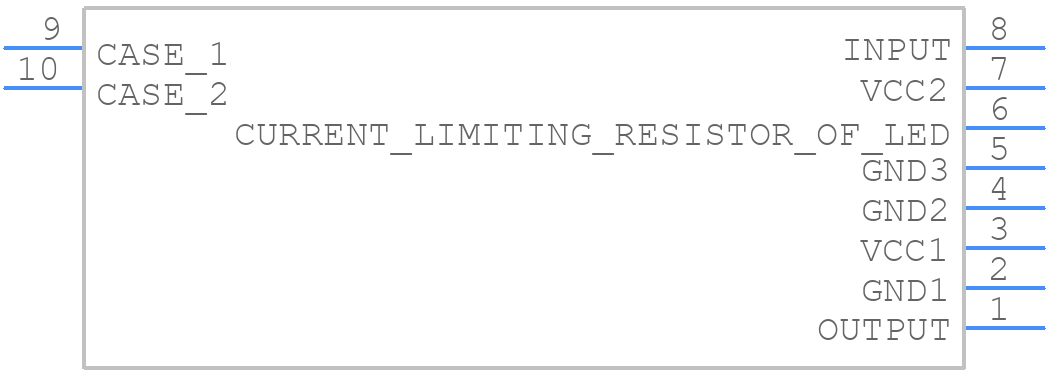

TODX2950A(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints

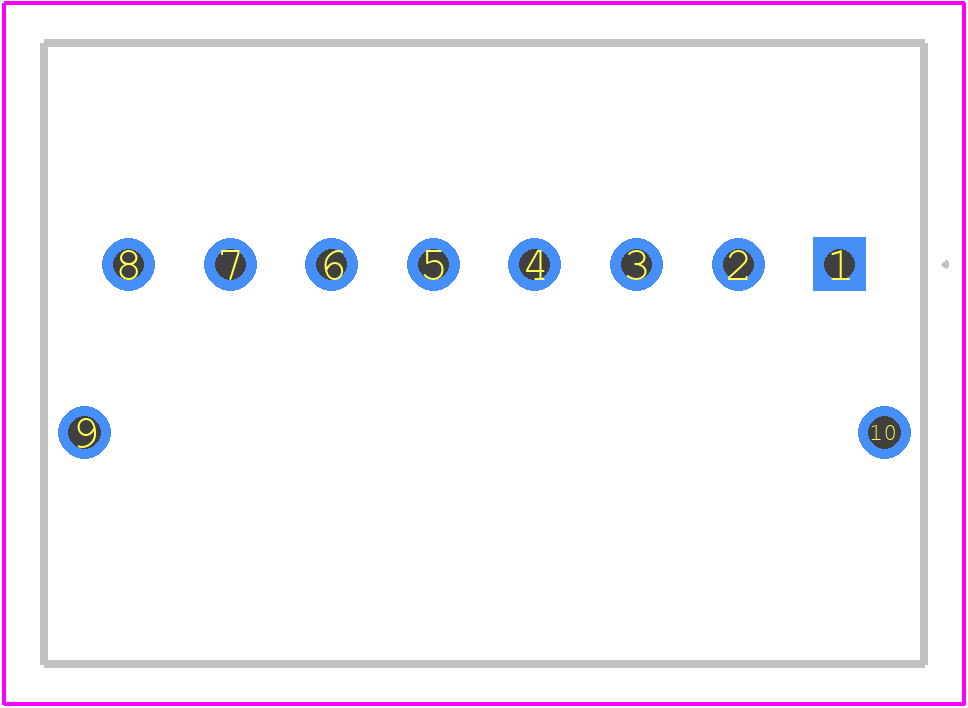

TODX2950A(F) - Toshiba PCB footprint - Other - Other - Molded resin package
click to zoom
3D Models
TODX2950A(F) - Toshiba - 3D model - Other - Molded resin package
click to zoom

TODX2950A(F) Details

  • Manufacturer Part Number:

    TODX2950A(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-10

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Body Height:

    8.2 mm

  • Body Length or Diameter:

    22 mm

  • Connection Type:

    F07 CONNECTOR

  • Data Rate (Rx):

    10 Mbps

  • Data Rate (Tx):

    10 Mbps

  • Emitter/Detector Type:

    LED

  • Fiber Optic Device Type:

    TRANSCEIVER

  • Fiber Type:

    980/1000 POF

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Operating Wavelength-Nom:

    650 nm

  • Optical Power Output-Nom:

    0.063 mW

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

TODX2950A(F) Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces as short as possible and avoid crossing them over each other.
  • Mount the device on a heat sink with a thermal conductivity of at least 1 W/m-K. Ensure good thermal contact between the device and heat sink using a thermal interface material. Keep the ambient temperature below 85°C.
  • The maximum allowed voltage on the input pins is 5.5V. Exceeding this voltage may damage the device.
  • Yes, but ensure the device is properly sealed and conformal coated to prevent moisture ingress. The device can operate in environments with up to 80% relative humidity.
  • Check the power supply voltage, input signal integrity, and output load impedance. Use an oscilloscope to verify the input and output waveforms. Consult the datasheet and application notes for troubleshooting guidelines.
