The maximum output power of the TOP243R-TL is 24W, but it can be derated based on the input voltage, output voltage, and ambient temperature.
To ensure the TOP243R-TL operates within its SOA, follow the guidelines in the datasheet for input voltage, output voltage, output current, and ambient temperature. Also, make sure to provide adequate heat sinking and thermal management.
The BYPASS pin is used to connect an external bypass capacitor to improve the power supply's noise immunity and electromagnetic compatibility (EMC). It is recommended to connect a 10nF to 100nF capacitor between the BYPASS pin and the output voltage pin.
No, the TOP243R-TL is not suitable for high-impedance output designs. It is designed for low-impedance output applications, such as powering LED lighting or small appliances. For high-impedance output designs, consider using a different power IC or adding an external output stage.
To optimize the layout and thermal design for the TOP243R-TL, follow the guidelines in the datasheet and application notes. Keep the power IC away from heat sources, use a thermal pad or heat sink, and ensure good airflow around the device. Also, minimize the loop area of the power traces to reduce electromagnetic interference (EMI).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TOP243R-TL Overview

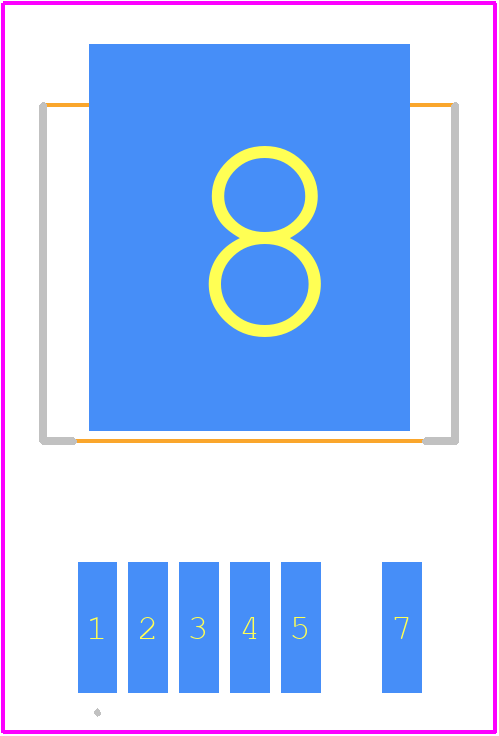

Use the download button to access the TOP243R-TL schematic symbol and PCB footprint.
