The TOP246R-TL can handle up to 246W of output power, but this depends on the input voltage, output voltage, and other design parameters. It's essential to check the datasheet and perform thermal calculations to ensure the device can handle the desired output power.
To choose the right transformer, consider the input voltage, output voltage, and power rating. The transformer's turns ratio, inductance, and core material also play a crucial role. Power Integrations provides a transformer design guide and a list of recommended transformers for the TOP246R-TL.
The BYPASS pin is used to bypass the internal voltage regulator and connect an external voltage source. This pin can be used to improve the power supply's efficiency or to provide a separate voltage source for the controller. Consult the datasheet for specific guidelines on using the BYPASS pin.
To ensure safe operation, calculate the device's junction temperature (Tj) using the thermal resistance (RθJA) and the maximum ambient temperature (Ta). The TOP246R-TL has a maximum Tj of 150°C. Use thermal design guidelines and heat sinks if necessary to keep the device within a safe temperature range.
For optimal performance and reliability, follow good PCB design practices, such as separating high-voltage and low-voltage sections, using a solid ground plane, and minimizing loop areas. Keep the TOP246R-TL and its associated components away from heat sources and ensure good airflow.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TOP246R-TL Overview

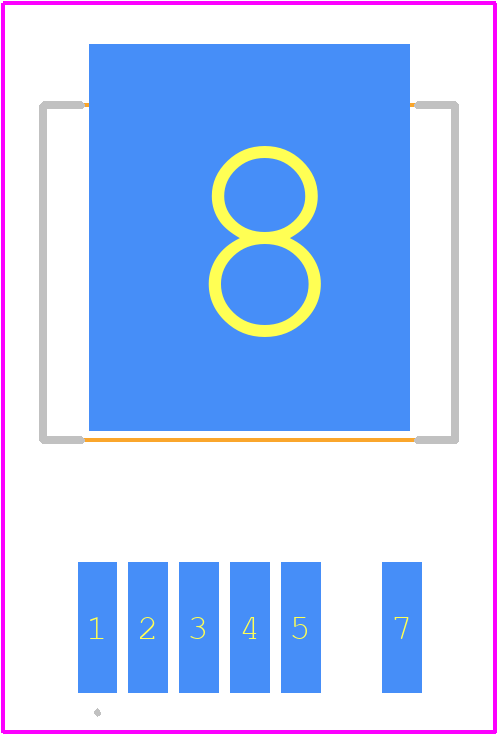

Use the download button to access the TOP246R-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TOP24,
or try a keyword search, such as Power Management Circuits
